Earthing and Ground Resistance Testing: Best Practices for Industrial Safety

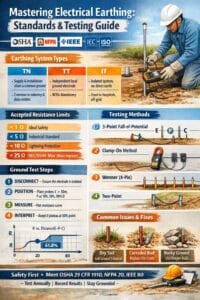

Earthing — the deliberate electrical connection of a system or equipment to the general mass of earth — is the single most critical element of electrical safety in any installation. Whether in a downtown data centre, an offshore oil platform, or a suburban school, a deficient earth electrode can be the difference between a nuisance trip and a fatal electrocution. This article provides a comprehensive, practitioner-level guide to understanding earthing system classifications (TN, TT, IT), conducting rigorous ground resistance testing using industry-standard methodologies, interpreting results against regulatory thresholds, and implementing proven mitigation strategies when values are non-compliant.

Referenced standards include OSHA 29 CFR 1910 Subpart S, NFPA 70 (National Electrical Code), NFPA 70E (Standard for Electrical Safety in the Workplace), IEEE Std 80-2013 (Guide for Safety in AC Substation Grounding), IEC 60364, and BS 7430. Victron Energy’s earthing guidance for off-grid and hybrid power systems is specifically addressed for the growing renewable energy sector.

1. Why Earthing Matters: The Science of Safety

1.1 The Physics of Fault Current

When an energised conductor contacts an unintentionally grounded metal enclosure — a motor frame, switchgear cabinet, or conduit — the result is a ground fault. Ohm’s Law dictates that the magnitude of fault current flowing through a person who bridges the gap between the enclosure and true earth is:



Iₚₑₐᵉˢᵒⁿ = Vₜᵒᴵʳᵉ / (Rᵉʳᵙ + Rₑʳᵼᴹ + Rₚʰ)



Where R_body is typically 1,000 Ω for dry skin (IEC 60479-1). The threshold of ventricular fibrillation is as low as 50 mA for currents lasting >1 second. A robust earth electrode presenting resistance values of 1 Ω or less ensures ground-fault current is high enough to operate protective devices (circuit breakers, RCDs/GFCIs) within milliseconds, well before physiologically dangerous energy accumulates in a human body.

1.2 Regulatory Mandates

Earthing is not merely best practice — it is a legal requirement in virtually every jurisdiction:

• OSHA 29 CFR 1910.304(g): Requires that non-current-carrying metal parts of fixed equipment shall be grounded if the equipment is in a wet or damp location, in electrical contact with metal, or if it operates at over 150 V to ground.
• OSHA 29 CFR 1910.303(b)(2): Requires that equipment be installed per the NEC (NFPA 70) and manufacturer’s instructions.
• NFPA 70, Article 250: The foundational US code governing grounding and bonding — specifying electrode types, conductor sizing, resistance requirements, and testing intervals.
• NFPA 70E (2021), Article 110.3: Mandates that electrical equipment be maintained in a safe condition and that grounding systems be periodically tested.
• IEC 60364-5-54: The international standard governing selection and erection of electrical equipment — earthing arrangements and protective conductors.
• BS 7430:2011+A1:2015: The UK Code of Practice for earthing, widely referenced in Commonwealth countries and adopted by many multinational operators.



OSHA COMPLIANCE NOTE Failure to maintain adequate earthing systems can result in OSHA citations under 29 CFR 1910 Subpart S. Penalties for serious violations currently reach $15,625 per violation, with willful/repeat violations reaching $156,259. Beyond fines, the employer may face criminal liability in fatality cases.

1.3 Victron Energy and Earthing in Off-Grid Systems

As distributed and renewable energy installations proliferate, earthing becomes more complex. Victron Energy — a leading manufacturer of inverters, battery systems, and energy management equipment — explicitly addresses earthing configuration in their technical manuals for MultiPlus, Quattro, and EasySolar product lines.



Key Victron earthing considerations include:

• Transfer switch neutral: Victron inverter-chargers can be configured to connect or disconnect the neutral-to-ground bond depending on whether shore power (grid) is present. Incorrect configuration can result in a floating neutral fault or double-bonding, both of which are shock hazards.
• IT system compatibility: For off-grid applications where the generator neutral is not grounded externally, Victron recommends an isolated (IT) earthing scheme with an Insulation Monitoring Device (IMD) per IEC 61557-8.
• Earth leakage protection: Victron MPPT charge controllers are not galvanically isolated; Victron’s documentation warns that depending on jurisdiction and installation type, a separate earth-fault detection relay may be required on PV strings.
• Bus and system integration: Ground-referenced communications across Victron products require a common equipotential bonding bar to prevent transient-induced data corruption and ground loops.



VICTRON DESIGN GUIDANCE Always configure the Victron assistant (VEConfigure) ‘Ground Relay’ setting to match your installation’s earthing scheme. Enabling the ground relay in a TN-S system where the neutral is already bonded at the utility transformer can cause nuisance RCD tripping and potential equipment damage.



2. Earthing System Classifications: TN, TT, and IT

The IEC 60364 series (adopted internationally and referenced by NFPA 70’s companion documents) classifies earthing systems using a two-letter code. The first letter indicates the relationship of the supply system to earth; the second indicates the relationship of the exposed conductive parts of the installation to earth.



Code	1st Letter: Supply	2nd Letter: Installation
T	Terra — Direct connection of one supply point to earth	Terra — Direct connection of exposed parts to earth (independent electrode)
N	N/A	Neutral — Exposed parts connected to the earthed point of the supply (neutral conductor)
I	Isolated — All live parts isolated from earth, or one point earthed through impedance	N/A
C	N/A	Combined — Neutral and protective functions combined in a single conductor (PEN)
S	N/A	Separated — Neutral and protective conductors are separate throughout

Table 1: IEC 60364 Earthing System Code Definitions



2.1 TN Systems (Terra-Neutral)

In TN systems, the source (transformer star point or generator neutral) is directly connected to earth, and all exposed conductive parts are connected to that earthed point via protective conductors. TN systems are subdivided into three variants:

2.1.1 TN-S: Separate Protective and Neutral Conductors

The PE (Protective Earth) and N (Neutral) conductors are completely separate from the transformer to all points of utilisation. This is the safest and preferred configuration because:

• No circulating neutral currents on the PE conductor
• True equipotential bonding — any fault to the PE conductor is immediately detected by overcurrent protection
• Virtually eliminates “neutral-to-earth” voltage issues at the equipment



Typical application: Modern industrial facilities, hospitals (healthcare electrical systems per NFPA 99), data centres, and any installation where EMC performance is critical.



TN-S DIAGRAM (Schematic) [HV/LV TX]   L1 ────────────────── [Load] Star  Pt    L2 ────────────────── [Load] │      L3 ────────────────── [Load] ├──N── N  ────────────────── [Load] └───── PE ────────────────── [Load Frame] [⋮] Earth [Earth]  (Separate conductors all the way)

Figure 1: TN-S System — Separate PE and N conductors throughout the installation

2.1.2 TN-C: Combined PEN Conductor

The Protective Earth and Neutral functions are carried by a single PEN (Protective Earth Neutral) conductor. This was standard in older European and UK installations (“PME” — Protective Multiple Earthing). It is now largely prohibited for new domestic installations in the UK under BS 7671 but remains in service in industrial settings and portions of older infrastructure.

Critical limitations:

• Prohibited for circuits with portable equipment in damp/outdoor locations
• Any break in the PEN conductor can raise all connected equipment frames to phase voltage — potentially lethal
• Not compatible with Class I equipment in locations served by RCDs (the combined conductor confuses the RCD’s detection mechanism)
• Cannot be used downstream of an RCD

2.1.3 TN-C-S: Split PEN (Most Common in the UK/US Equivalent)

The supply portion uses a combined PEN conductor (TN-C), which splits into separate PE and N conductors at the point of entry to the installation — typically at the main distribution board. This is the Standard for most UK domestic and industrial premises, known in the UK as PME, and closely analogous to the US “grounded neutral” service with a main bonding jumper per NEC Article 250.

IMPORTANT: US EQUIVALENT In the United States, the NEC does not use IEC terminology, but a typical 120/240 V or 277/480 V service using a grounded neutral with separate ground conductors from the main panel onward is functionally equivalent to TN-C-S. The ‘main bonding jumper’ (MBJ) is the critical TN-C-S system element per NEC 250.24(B).



2.2 TT Systems (Terra-Terra)

In a TT system, the supply source is earthed at the transformer, but the installation’s exposed conductive parts are connected to a separate, independent earth electrode — not to the supply earth. TT is the default system in France, Italy, rural areas of many countries, and is widely used in temporary installations, caravan parks, marinas, and agricultural premises.

TT system characteristics:

• Fault current loop impedance is high (two earth electrodes in series with soil resistance between them), meaning standard overcurrent devices may NOT clear faults reliably
• Mandatory requirement for RCDs (Residual Current Devices) / GFCIs with a trip current IΔn ≤ 0.3 A to provide supplementary shock protection
• Earth electrode resistance R_A must satisfy: R_A × IΔn ≤ 50 V (IEC 60364-4-41 requirement)
• Example: With a 300 mA RCD, maximum permissible electrode resistance = 50 / 0.3 = 167 Ω. With a 30 mA RCD: 50 / 0.03 = 1,667 Ω — very permissive, but 30 mA RCDs must be used.



Typical applications: Rural distribution networks, temporary site supplies, caravan/RV parks, agricultural buildings, marina shore power (NFPA 303), and solar PV installations (where utility connection is absent).

2.3 IT Systems (Isolated Terra)

In an IT system, all live conductors are isolated from earth (or connected through a high impedance). The installation earth electrode is independent. This means the first earth fault does NOT create a fault current — the installation can continue operating while the fault is located and repaired.

IT system characteristics:

• Highest possible continuity of supply — critical for hospitals (operating theatres per IEC 60364-7-710), mines, offshore platforms, and chemical plants
• Mandatory use of Insulation Monitoring Devices (IMDs) to detect the first fault before a second fault can create a dangerous double-fault condition
• First fault: Alarm only; service continues
• Second fault (same phase, different location): Creates high fault current — must be rapidly cleared by overcurrent protection or the IMD must disconnect the circuit
• Victron Energy uses IT-equivalent configurations in off-grid systems with their proprietary Insulation Resistance Monitoring



Feature	TN-S	TN-C-S	TT	IT
Supply Earth	Transformer neutral	Transformer neutral (PEN)	Transformer neutral	Isolated / impedance
Installation Earth	Linked to supply PE	Separate from main board	Independent electrode	Independent electrode
RCD Required?	Optional / recommended	Recommended for circuits	MANDATORY	IMD mandatory; RCD recommended
Fault Clearing	Overcurrent device	Overcurrent device	RCD required	IMD alarm; second fault trips OC device
Continuity of Service	Immediate trip	Immediate trip	Immediate trip (RCD)	First fault: service continues
Common Applications	Industrial, hospitals, data centres	UK domestic, most commercial	Rural, temporary, France/Italy	Hospitals (OR), offshore, mines
PE/N Conductors	Always separate	Separate from main board	Always separate	Always separate
Max Touch Voltage (IEC)	50 V AC	50 V AC	50 V AC	50 V AC (per phase in double-fault)

Table 2: Comparative Summary of Earthing System Types per IEC 60364



3. Earth Resistance Testing: Theory and Methods

3.1 What Are We Actually Measuring?

Earth resistance (also called ground resistance or electrode resistance to earth) is the total impedance presented by the electrode system to the flow of fault current into the general mass of earth. It comprises three components:

• Electrode resistance: The resistance of the electrode conductor itself (typically negligible — copper rod, steel rod)
• Contact resistance: Resistance at the interface between the electrode surface and the surrounding soil
• Soil resistance: The resistive path through the soil, radiating outward from the electrode in hemisphere-shaped shells until the shells are far enough apart that their combined resistance is negligible



The third component — soil resistance — dominates and depends on soil resistivity (ρ, Ohm-metres). The soil resistivity is a function of soil type, moisture content, temperature, and salt content.



Soil / Ground Type	Typical Resistivity (Ω·m)	Seasonality
Seawater saturated soil	0.01 – 1	Very stable
Swampy ground / marshland	1 – 30	Stable
Clay / loam	20 – 100	Moderate variation
Sandy loam / cultivated soil	50 – 500	High variation (rain/drought)
Gravel / coarse sand	200 – 3,000	Very high variation
Rock (granite, basalt)	1,000 – 30,000	Stable but high
Concrete (reinforced)	30 – 1,000	Varies with moisture
Permafrost	10,000 – 100,000	Stable but extremely high

Table 3: Typical Soil Resistivity Values (IEEE Std 80-2013, Appendix B)



3.2 Regulatory Resistance Thresholds

Standard / Application	Maximum Earth Resistance	Notes
NEC 250.53(A)(2) — Rod/Pipe Electrode	≤ 25 Ω	Must add supplemental electrode if >25 Ω
NFPA 780 — Lightning Protection	≤ 10 Ω	At each down-conductor
IEEE Std 80 — Substation Grid	Site-specific (step/touch voltage)	Calculated, not a fixed Ω limit
BS 7430 — General LV Systems	≤ 1 Ω (ideally)	≤ 10 Ω acceptable with RCD
BS EN 62305 — Lightning Protection	≤ 10 Ω	Per down-conductor
Telecom / Data Centre (Telcordia)	≤ 1 Ω	Sensitive equipment bonding
IEC 60364-5-54 — General Installations	Depends on RCD: R_A × IΔn ≤ 50 V	See TT system calculation
OSHA / NEC — Equipment Grounding	Sized for fault clearing, not fixed Ω	Per Table 250.122 conductor sizing
Victron Off-Grid (IT System)	≤ 10 Ω recommended	Per Victron install manual

Table 4: Earth Resistance Limits by Standard and Application



3.3 Testing Methods Overview

Four principal methods are used in professional earth resistance testing:



Method	Probes Required	Best For	Limitation
Fall-of-Potential (3-pole)	3 (E, P, C)	Standalone electrodes, substations	Requires space for auxiliary stakes (>30 m)
Simplified Fall-of-Potential (61.8% Rule)	3 (E, P, C)	Quick field checks, limited space	Less accurate for complex electrode geometry
Stakeless / Clamp-on	0 (clamp only)	Multigrounded systems, live plant	Requires parallel ground paths to exist
Soil Resistivity (Wenner 4-pin)	4 equally spaced	Soil surveys, new installation design	Large area required; time-consuming
Two-point Method	2 (E, C)	Reference check only	Inaccurate — includes reference resistance
Induced Frequency Method	2 (clamps only)	Live HV substations, tower footings	Specialist equipment; requires training

Table 5: Earth Resistance Testing Methods Comparison



4. Fall-of-Potential Method: Step-by-Step Tutorial

The fall-of-potential method is the most accurate and universally accepted technique for measuring the resistance of a single earth electrode or electrode system. It is specified in IEEE Std 81-2012 (Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials), BS 7430, and is the default method referenced in Fluke and Hioki application notes.

4.1 Principle of Operation

The tester injects a known alternating test current (typically 128 Hz or 55.55 Hz — frequencies chosen to avoid harmonic interference from 50/60 Hz power systems) between the electrode under test (E) and a remote current auxiliary electrode (C). A separate voltage probe electrode (P) measures the potential difference at various distances along the line E-C.

The resistance at any probe position is:

R = Vₚ / Iₜ    where Vₚ = voltage at probe P, Iₜ = injected current



A characteristic “plateau” appears in the curve of R vs. probe distance when the probe is located in a zone unaffected by either the test electrode’s or the auxiliary current electrode’s resistance zone. The resistance value at this plateau is the true electrode resistance.

4.2 Equipment Required

• Earth resistance tester (see Section 5 for Fluke and Hioki models)
• Three test leads of appropriate colour coding (E = green, P = yellow, C = red) — minimum 40 m, ideally 60 m each
• Two auxiliary test stakes / spikes (typically steel, 300–500 mm long with handle)
• Driving mallet or hammer
• Measuring tape (50 m minimum) or surveyor’s wheel
• Moisture spray bottle (to improve stake contact in dry soil)
• Personal Protective Equipment: Class 0 insulating gloves, safety glasses, hi-visibility vest
• Site survey plan showing electrode layout and buried services (call 811 / Dial Before You Dig before staking)
• Test record form or digital tablet for logging

4.3 Pre-Test Safety Procedures

SAFETY-CRITICAL STEP Before commencing any earth resistance test, confirm with the facility’s Electrical Safety Officer that a Safe System of Work (SSOW) / Permit to Work (PTW) is in place. The electrode under test must be temporarily disconnected from the installation’s bonded network during testing, creating a potentially floating condition. Barriers and signage must be erected.



1. Obtain a Permit to Work authorised by the Electrical Responsible Person (ERP/AE). Log into the site isolation register.
2. Identify all bonded connections to the electrode under test. Using a clamp meter, verify zero current is flowing on the ground conductor before disconnection.
3. Isolate the electrode from the bonded equipotential network using the disconnection link (most electrodes have a test link fitted per BS 7430 / NEC 250.68). Post ‘DO NOT RECONNECT’ tags.
4. Conduct a quick two-point check using a multimeter between the disconnected electrode and a known reference to confirm isolation.
5. Don PPE: insulating gloves, safety glasses. Brief all personnel within the test area.
6. Call your local underground service locating authority (811 in the US; 0800 002 388 in the UK via LSBUD) and mark all buried services on the test route.

4.4 Electrode and Lead Layout

FALL-OF-POTENTIAL LAYOUT DIAGRAM [E]  ─────────────  [P]  ──────────────────────────  [C] Electrode   ↔── d ──→   Potential   ↔─────── D ───────↔  Current Under Test  (varies: 0.2D, 0.4D…)  Probe    (fixed = 30 m + min)  Aux ⋮[Ground]                                                      ⋮[Ground] Rule: Probe P moved to positions: 20%, 30%, 40%, 50%, 60%, 70%, 80% of D   True R = reading at 61.8% of D (if plateau is flat and consistent)

Figure 2: Fall-of-Potential Test Layout — E (electrode), P (potential probe), C (current auxiliary)

7. Drive the current auxiliary stake (C) at a distance (D) of at least 30 metres from the electrode under test (E) in a straight line. For large electrode systems (e.g., substation grids), D should be at least 5× the maximum diagonal dimension of the electrode system per IEEE Std 81.
8. Connect the test lead from tester terminal C to the auxiliary stake. Connect terminal E to the electrode under test. Leave terminal P disconnected for now.
9. Set the tester to the 3-pole (fall-of-potential) test mode. Confirm the injected test frequency (128 Hz on Fluke 1625; 128 Hz on Hioki FT6031).
10. Drive the potential probe (P) at d = 20% of D from the test electrode. Connect terminal P to this probe. Record the resistance reading.
11. Move the potential probe to d = 30%, 40%, 50%, 60%, 70%, 80% of D. Record the resistance reading at each position.
12. Plot the readings on a resistance vs. distance graph. Identify the plateau region. The 61.8% Rule (Ratio Method) specifies that if a true plateau exists, the reading at 61.8% of D approximates the true electrode resistance.
13. If no clear plateau exists (readings continuously increase or decrease), the current auxiliary electrode (C) is too close. Increase D by 50% and repeat.
14. Verify: Retest with the current electrode moved 10% closer and 10% further. If all three 61.8% readings agree within ±2%, accept the average as the result.
15. Reconnect the electrode to the bonded network. Remove all tags. Log results and restore the Permit to Work. Update the installation’s test record.



4.5 The 61.8% Rule — Mathematical Basis

The ratio 61.8% derives from the mathematical property of hemisphere resistance zones. For a simple driven rod electrode in uniform soil, the total resistance converges when the potential probe is placed at approximately 0.618 times the electrode-to-current-electrode spacing. This is essentially the reciprocal of the golden ratio (φ ≈ 1.618), a coincidence of hemispherical geometry.

However, this rule ONLY applies when:

• The soil is reasonably uniform (confirmed by consistent Wenner 4-pin soil resistivity measurements)
• The current electrode is truly remote (no overlap of resistance zones)
• The test is conducted in a straight-line layout (E, P, C collinear)



FIELD TIP If your 61.8% reading differs by more than 10% from the 50% and 72% readings, do NOT accept the result. Increase the C stake distance by a minimum of 50% and retest. A non-flat plateau curve is the single most common cause of erroneous earth resistance measurements in field testing.



5. Testing Equipment: Fluke and Hioki Ground Resistance Testers

5.1 Fluke Corporation Instruments

Fluke Corporation (Everett, WA, USA — a subsidiary of Fortive Corporation) is the global market leader in portable electronic test tools. Their earth ground testing range spans from basic two-terminal models to sophisticated clamp-based multifunction instruments.



Model	Test Methods	Frequency	Display	Key Feature	Best For
Fluke 1621	2-pole, 3-pole	128 Hz	LCD analog + digital	Basic, waterproof IP54	Routine checks, simple installations
Fluke 1623-2	2-pole, 3-pole, clamp	128 Hz	Backlit LCD	Built-in clamp (stakeless)	Multigrounded neutral systems
Fluke 1625-2 GEO	2-pole, 3-pole, 4-pole (Wenner), clamp	55/94/128 Hz	Large backlit LCD	Soil resistivity + ground resistance	Full site surveys, substations
Fluke 1630-2 FC	Clamp-on only	Variable	LCD	iFlex clamp, Fluke Connect™ wireless	Live plant; no stakes; trend monitoring
Fluke 1760 Power Quality	Impedance + power quality	50/60 Hz	Color touchscreen	Combined power quality + grounding	Critical facilities

Table 6: Fluke Earth Ground Tester Product Comparison



The Fluke 1625-2 GEO is the industry workhorse for comprehensive earthing surveys. Key specifications:

• Measurement range: 0.001 Ω to 19.99 kΩ (3-pole mode)
• Accuracy: ±2% ±5 digits in 3-pole mode
• Test current: up to 50 mA (safe for use on disconnected electrode systems)
• Soil resistivity range: 0.001 to 19.99 kΩ·m (4-pole Wenner mode)
• Interference rejection: up to 30 V AC at 50/60 Hz
• Data logging: 99 readings with timestamp (download via USB)
• Safety: CAT IV 600 V (for use on live distribution systems — clamp mode only)

5.2 Hioki E.E. Corporation Instruments

Hioki E.E. Corporation (Ueda, Nagano, Japan) is a leading precision instrument manufacturer with particular strength in impedance and earthing measurement. Their ground testing instruments are widely used in Asia-Pacific markets and are increasingly specified in European and North American projects requiring high-precision measurements.



Model	Test Methods	Frequency	Display	Key Feature	Best For
Hioki FT3151	3-pole fall-of-potential	128 Hz	LCD	Entry-level, lightweight	Basic commissioning tests
Hioki FT6031-50	3-pole, 4-pole (Wenner), 2-clamp	128 Hz	Color LCD with graph	Simultaneous graph display, IP54	Site surveys with real-time curve analysis
Hioki FT6035	Clamp-on stakeless	1 kHz	Color LCD	High-precision clamp, EMI rejection	Live multigrounded systems
Hioki FT3470-52	2-pole, 3-pole	55/94/128 Hz	Large LCD	Wireless Bluetooth data logging	Industrial + utility applications
Hioki Z3210 Wireless	Data collector only	N/A	App-based	Wirelessly pairs with FT6031	Remote reading in confined/hazardous areas

Table 7: Hioki Ground Resistance Tester Product Comparison



The Hioki FT6031-50 is particularly valued for its real-time graphical display of the resistance curve during fall-of-potential testing, allowing the engineer to immediately identify plateau quality without post-test plotting. This saves significant time on multi-electrode site surveys.



CALIBRATION REMINDER Both Fluke and Hioki instruments require annual NIST-traceable calibration per ISO/IEC 17025. Always verify the calibration certificate is current before commencing a formal test that will be submitted for regulatory compliance. Record the instrument serial number and calibration expiry date in your test report.



6. Soil Resistivity Testing: The Wenner 4-Pin Method

Before designing or evaluating a grounding electrode system, soil resistivity must be characterised. The Wenner 4-pin (four-electrode) method is the standard technique, specified in IEEE Std 81-2012, ASTM G57, and referenced in IEEE Std 80 for substation design.

6.1 Wenner Method Procedure

16. Place four equally spaced probes in a straight line at spacing distance ‘a’. Typical spacings: 0.5 m, 1 m, 2 m, 5 m, 10 m, 20 m (surveys multiple depth layers).
17. Connect outer pins (C1, C2) to the current terminals of the instrument. Connect inner pins (P1, P2) to the potential terminals.
18. The instrument injects current and measures the resulting voltage. Apparent resistivity is calculated:

ρₐ = 2π × a × R    (Ohm-metres)



19. Rotate the entire array 90° and repeat to detect soil anisotropy.
20. Move the array to different locations across the site. Record latitude/longitude of each array position.
21. Plot apparent resistivity vs. spacing. Use computer modelling (SES RESAP, Grounding Design Software) to interpret multi-layer soil models.



At depth: The effective depth sampled by each measurement is approximately ‘a’ (the probe spacing). So a spacing of 5 m samples soil to approximately 5 m depth — critical for deep-driven rod electrode design.



7. Interpreting Test Results

7.1 Result Classification Framework

Measured Resistance	Classification	Required Action
≤ 1 Ω	EXCELLENT	No action required. Re-test per schedule (typically 2-year cycle for industrial).
1 Ω – 5 Ω	GOOD	Acceptable for most industrial applications. Document and monitor at next scheduled test.
5 Ω – 10 Ω	MARGINAL	Acceptable ONLY if protected by 30 mA RCD (TT systems) or equivalent. Plan improvement measures.
10 Ω – 25 Ω	POOR	Investigate immediately. Add supplemental electrodes or chemical enhancement. NFPA 780 lightning protection FAILS.
> 25 Ω	FAIL	Non-compliant with NEC 250.53(A)(2). Mandatory remediation before system energisation.

Table 8: Earth Resistance Result Classification and Required Actions

7.2 Reading the Resistance Curve — What Good Looks Like

A valid fall-of-potential test produces a characteristic S-shaped or plateau curve when resistance readings are plotted against probe distance. The key features to assess:

• Plateau region: Readings from approximately 40% to 70% of D should show a flat region (within ±5%) — this is the zone of true measurement, unaffected by both electrode and current-auxiliary resistance zones
• Rising section (0–40%): Resistance increases as the probe moves away from the low-resistance zone immediately surrounding the electrode
• Rising section (70–100%): Resistance begins to rise again as the probe enters the resistance zone of the current auxiliary electrode
• If the curve is a smooth S with a clear plateau: Excellent measurement confidence
• If the curve continuously increases without plateau: Current auxiliary too close — increase D
• If the curve shows random scatter: Interference (stray currents, power frequency induction) — check tester’s interference warning, try a different test frequency
• If the reading at E is very low (≈0 Ω) before any probe movement: Confirms the electrode is properly bonded to a large earthing network, or the disconnection was incomplete — verify isolation

7.3 Seasonal Correction Factors

Earth resistance varies significantly with soil moisture and temperature. A single measurement may not represent the worst-case (summer drought or winter freeze). For compliance-critical installations:



• Test in the worst expected season: For temperate climates, this is typically mid-summer (dry) or mid-winter (frozen ground, if applicable)
• Apply seasonal correction factors (SCFs) from IEEE Std 81: Typical values range from 1.1 (autumn, moist) to 3.0 (summer, dry sandy soil) relative to spring measurements
• Consider continuous monitoring: Data centres and substations increasingly use permanently installed earth impedance monitors (e.g., Megger DET series, Fluke’s networked monitoring solutions) to capture seasonal trends



Season	Soil Condition	SCF (Sandy Loam)	SCF (Clay)
Winter (frozen)	Frozen to 30 cm	5.0 – 8.0	2.0 – 3.5
Spring	Moist / thawed	1.0 (baseline)	1.0 (baseline)
Summer	Dry, warm	2.5 – 4.0	1.5 – 2.5
Autumn	Moist, cooling	1.1 – 1.5	1.0 – 1.2

Table 9: Seasonal Correction Factors for Soil Resistivity (Indicative, IEEE Std 81)



8. Common Earthing Faults and Mitigation Strategies

8.1 High Earth Resistance — Causes and Remediation

Root Cause	Symptoms	Mitigation Strategy
Dry / sandy soil	Seasonally high resistance; worse in summer	Install horizontal ring conductors or ground enhancement material (GEM) such as bentonite clay backfill or conductive cement
Corroded electrode	Continuous rise in resistance over years; visible corrosion at test link	Inspect and replace electrode. Use 316 stainless steel or copper-bonded steel rods in aggressive soils. Apply impressed current cathodic protection (ICCP) for critical systems.
Rock / high-resistivity substrate	Always high resistance; soil resistivity survey confirms rock at depth	Use horizontal buried radials (counterpoise), deep-driven chemical electrodes, or concrete-encased electrodes (Ufer grounds per NEC 250.52(A)(3))
Electrode too short	Good surface soil but resistance still high	Drive additional rod in parallel (NEC 250.53: spacing minimum = rod length). Each additional parallel rod reduces combined resistance.
Poor electrode-to-soil contact	High contact resistance; reading improves when wet	Re-drive electrode, use backfill compaction, apply conductive earth electrode compound
Frozen soil (winter)	Seasonal spike in resistance	Install electrode below frost line. Add chemical enhancement. Use deep-driven rods (>3 m below surface).

Table 10: High Earth Resistance — Causes and Mitigation

8.2 Neutral-to-Earth Voltage (NEV) Faults

Neutral-to-earth voltage — also called stray voltage — occurs when the neutral conductor carries significant unbalanced load current, causing a voltage drop along its length. This voltage appears between the neutral/earth of equipment and true remote earth.

Common in TN-C-S (PME) systems. Typical NEV values >1 V indicate a problematic installation. Values >10 V represent a shock hazard to animals and humans touching simultaneously grounded and earth-referenced surfaces (e.g., a cow touching a metal stall while standing on damp ground — a well-documented agricultural hazard).

• Detection: Measure AC voltage between the main earth bar and a remote reference probe with no current flowing in the PE conductor
• Mitigation in TN-C-S: Ensure neutral conductor is correctly sized per NEC Table 250.122; confirm the main bonding jumper is correctly installed per NEC 250.28; balance 3-phase loads
• For sensitive equipment: Convert to TN-S by running a dedicated PE from the transformer secondary terminal, eliminating shared path with neutral current

8.3 Ground Loops in Signal and Data Systems

Ground loops occur when two pieces of equipment have slightly different earth potentials, causing circulating currents in interconnecting signal cables. Common in industrial control systems (PLCs, SCADA, 4–20 mA loops) and audio-visual systems.

• Prevention: Establish a single-point earthing (SPE) reference for all sensitive signal equipment
• Isolation: Use optocouplers, isolation transformers, or signal isolators on all inter-system connections
• Victron-specific: When connecting Victron equipment to third-party battery management systems (BMS) or monitoring systems, Victron’s documentation specifically warns about ground loop risk on the VE.Bus port — use USB isolation adapters



INDUSTRIAL CONTROL SYSTEMS NOTE IEC 61000-5-2 (Electromagnetic Compatibility — Installation and Mitigation Guidelines — Earthing and Cabling) provides the authoritative reference for earthing of sensitive control and communication systems in industrial environments. This standard is essential reading for panel builders and automation engineers.

8.4 Disconnected or Deteriorated Bonding Conductors

The most dangerous earthing fault is one that is invisible during normal operation but catastrophic during a fault — an open-circuit or high-resistance equipotential bond. Causes include:

• Corroded or loose connections at the main earth bar
• Mechanical damage to bonding conductors from maintenance work, vibration, or thermal cycling
• Theft of copper earthing conductors (a significant problem in substations and remote installations)
• Incorrect installation: bonding conductor secured with paint-covered hardware, missing star washers, or inadequate torque



Detection: Low-resistance bonding tests using a dedicated low-resistance ohmmeter (milliohmmeter) such as the Fluke 1550C or Hioki RM3548 can measure bonding conductor resistance to ±0.001 Ω resolution. Per BS 7671 / IEC 60364, main equipotential bonding conductors should present <0.1 Ω resistance.



9. Standards, Regulations, and Compliance Framework

Standard / Code	Issuing Body	Scope	Key Earthing Clauses
NFPA 70 (NEC) 2023	NFPA (USA)	All electrical installations in US	Article 250 — Grounding and Bonding (entire article)
NFPA 70E 2021	NFPA (USA)	Workplace electrical safety	110.3 (maintenance), 130.6 (protective earthing)
NFPA 780 2023	NFPA (USA)	Lightning protection systems	Section 4 (grounding electrodes), ≤10 Ω
OSHA 29 CFR 1910 Subpart S	OSHA (USA)	General industry electrical safety	1910.304(g) (grounding), 1910.333 (live work)
IEEE Std 80-2013	IEEE (USA)	AC substation grounding	Chapters 5–14 (soil, electrode design, step/touch voltage)
IEEE Std 81-2012	IEEE (USA)	Ground testing methods	Chapters 5–7 (fall-of-potential, Wenner, clamp)
IEC 60364-5-54 Ed.3	IEC	LV installation earthing arrangements	544 (earth electrodes), 542 (PE conductors)
IEC 60364-4-41 Ed.3	IEC	Protection against electric shock	411 (automatic disconnection), 413 (TT/IT conditions)
BS 7430:2011+A1:2015	BSI (UK)	Earthing Code of Practice	Sections 5–9 (electrode types, testing, resistance limits)
BS 7671:2018+A2:2022 (18th Ed.)	BSI / IET (UK)	UK Wiring Regulations	Chapter 54 (earthing arrangements), Part 6 (inspection/testing)
IEC 62305-3:2010	IEC	Lightning protection	Clause 5.4 (earth termination systems)
Victron Energy Wiring Unlimited	Victron Energy (NL)	Off-grid system design	Chapter 4 (earthing and bonding), Chapter 7 (generators)

Table 11: Key Standards and Regulations for Earthing Systems



10. Testing Schedule and Frequency

Regulatory bodies and standards specify minimum testing intervals. The following schedule reflects best practice for industrial and commercial installations:



Installation Type	Initial Test	Routine Re-test Interval	Trigger Tests
New installation (pre-energisation)	Mandatory	N/A	N/A
Industrial LV (≤ 1 kV)	At commissioning	Every 3 years	After any earth fault; after soil disturbance; after flood
HV Substation	At commissioning	Every 5 years (IEEE Std 80)	After fault event; after building work in proximity
Lightning protection system	At commissioning	Every 1 year (NFPA 780)	After any lightning strike event; after electrode maintenance
Data centre / IT facility	At commissioning	Every 1 year	After any ground fault indication; after UPS system change
Hospital / Healthcare (Life Safety)	At commissioning	Every 1 year (NFPA 99)	After any fault; any renovation to electrical systems
Temporary site (construction)	Before first use	Monthly	After any earth disturbance; after heavy rain/frost
Off-grid / Victron system	At commissioning	Every 2 years	After battery system change; after generator replacement
Marine / Floating structure	At commissioning	Every 1 year (NFPA 303/305)	Before each season; after any storm damage

Table 12: Recommended Earth Resistance Testing Schedule by Installation Type



11. Step-by-Step: Clamp-On (Stakeless) Testing Method

Where driving auxiliary stakes is impractical — in urban areas, on paved surfaces, or in live plant — the clamp-on (stakeless) method allows testing without disconnecting the electrode from the system, provided there are at least two parallel ground paths.

11.1 Principle

A single clamp combines both the current injection and voltage measurement functions. The clamp induces a voltage into the grounding conductor loop and measures the resulting current. The grounding resistance is calculated from Ohm’s Law. Because multiple parallel paths exist, the instrument measures the loop resistance of the test electrode — which is the electrode’s individual resistance in parallel with all other paths.

CRITICAL LIMITATION The stakeless method CANNOT be used on a single-electrode system with no parallel ground path (e.g., a standalone driven rod in a TT system) — there is no complete circuit for current to flow through. Always verify with the 3-pole method on single-electrode systems.

11.2 Procedure

22. Ensure the system is multigrounded (multiple electrodes bonded to the same bus, or the system neutral is grounded at multiple points along the feeder — TN-C-S/PME service).
23. Select the stakeless mode on the instrument (e.g., Fluke 1625-2 GEO: hold the mode button; Hioki FT6035: dedicated mode switch).
24. Open the clamp jaw and close it around the conductor connecting the earth electrode to the main bonding system (the ‘down conductor’).
25. Press the test button. The instrument will indicate interference levels before testing — ensure interference is below 0.5 Ω equivalent.
26. Record the reading. This represents the loop resistance of the test electrode in combination with all parallel paths.
27. If the reading is R_loop, and you know the parallel combination resistance of all other electrodes (R_other from previous testing), the individual electrode resistance is: R_electrode = 1 / (1/R_loop – 1/R_other)
28. For acceptance testing, verify R_loop < 0.5 Ω for well-designed multigrounded systems; investigate any electrode showing R_loop > 2 Ω.

12. Pre-Test Safety & Compliance Checklist

Use the following checklist before every earth resistance test. Initial each item upon completion:

PRE-TEST SAFETY & COMPLIANCE CHECKLIST DOCUMENTATION & AUTHORISATION ☐     Permit to Work (PTW) issued and signed by Authorised Person ☐     Test plan reviewed and approved by ERP/facility manager ☐     Calibration certificates current for all instruments (within 12 months, NIST-traceable) ☐     Underground service drawings reviewed — locate before you dig (call 811 / LSBUD) ☐     Test record forms prepared (installation address, electrode ID, instrument S/N, calibration date) ☐     Risk Assessment and Method Statement (RAMS) reviewed and briefed to all personnel ISOLATION & DISCONNECTION ☐     Electrode under test disconnected from the bonded system at the test link ☐     DO NOT RECONNECT tags affixed to all isolation points ☐     Continuity test confirms disconnection (>1 MΩ isolation) ☐     All personnel briefed that the disconnected electrode is temporarily unprotected PPE & SITE SAFETY ☐     Insulating gloves (Class 0 minimum — rated 1,000 V AC) donned ☐     Safety glasses worn by all personnel ☐     Hi-visibility vest worn ☐     Test area cordoned off with barriers and safety signage ☐     No bystanders within 3 metres of any stake or test lead ☐     Emergency contact number confirmed (on-site first aider identified) TEST SETUP VERIFICATION ☐     Instrument leads inspected for damage — no cracked insulation, bent pins, or loose connections ☐     Current auxiliary stake driven ≥30 m from electrode under test (3-pole method) ☐     Potential probe layout confirmed collinear with E and C ☐     Tester interference check completed and accepted (<0.5 Ω equivalent interference) ☐     Test frequency confirmed (128 Hz for standard; check for local interference sources) ☐     Instrument set to correct test mode (3-pole, 4-pole, or stakeless as appropriate) POST-TEST & RESTORATION ☐     All readings recorded in test log with probe distances noted ☐     Resistance curve reviewed and plateau confirmed (accept only if plateau width >20% of D) ☐     Result compared against applicable standard limit (see Table 4 and Table 8) ☐     Electrode reconnected to bonded system — connection verified with clamp meter ☐     All tags removed and isolation register updated ☐     PTW closed and signed off ☐     Defects (if any) formally raised in the maintenance management system (CMMS/CAFM) ☐     Test certificate issued and filed in the installation’s O&M documentation



13. Conclusion

A robust earthing system is the invisible foundation upon which every other element of electrical safety depends. Overcurrent devices, RCDs, surge protectors, and arc-flash barriers are all rendered less effective — or entirely ineffective — when the earth electrode resistance is too high or bonding continuity is compromised.

The methodologies described in this article — particularly the fall-of-potential technique using Fluke or Hioki instrumentation, combined with rigorous pre-test isolation procedures, seasonal awareness, and post-test documentation — represent the gold standard for industrial earthing verification. Compliance with OSHA 29 CFR 1910, NFPA 70/70E, IEEE Std 80/81, IEC 60364, and the relevant national codes is not optional — it is a legal obligation and, far more importantly, a moral one.

Whether you are commissioning a new manufacturing facility, auditing an existing data centre, designing an off-grid Victron Energy system in a remote location, or preparing for an OSHA inspection, the principles in this guide provide a technically rigorous, standards-compliant framework for your earthing programme.
