India’s industrial sector is the backbone of the nation’s economy—and its largest energy consumer. With electricity prices averaging INR 7–9 per kWh for industrial consumers (CERC, 2024) and global carbon reporting obligations tightening, energy efficiency has moved from a compliance checkbox to a boardroom imperative. A structured energy audit is the single most powerful tool available to a facility manager to identify, quantify, and prioritise efficiency investments.
This guide presents the complete energy audit framework as practised under the Bureau of Energy Efficiency (BEE) regulatory framework, enhanced with international benchmarks from NYSERDA and the Green Building Alliance, and illustrated with a verified Indian industrial case study showing a payback period of under three years.

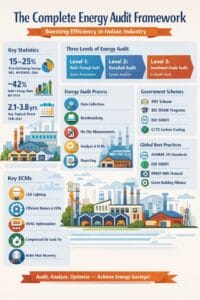

A BEE-Certified Energy Auditor performing an on-site Level 2 audit at an Indian industrial facility
| Key Statistic | Value | Source |
| Potential energy savings from audits | 15–25% of annual consumption | BEE, 2023 |
| NYSERDA industrial audit avg. savings | 18–22% energy cost reduction | NYSERDA Industrial Program Report, 2022 |
| GBA Pittsburgh mfg. facility savings | Up to 31% electrical savings | Green Building Alliance, 2021 |
| India industrial energy share | ~42% of total national energy | IEA India Energy Outlook, 2023 |
| PAT Scheme cumulative savings (Cycle I–III) | ~26.69 MTOE | BEE PAT Annual Report, 2023 |
| MSME units with >=1 formal audit conducted | <30% of registered units | NSIC-BEE Survey, 2022 |
| Average simple payback on ECM investments | 2.1–3.8 years | TERI Industrial Efficiency Study, 2022 |
Section 1: The Three Levels of Energy Audit
ASHRAE Standard 211-2018 and the BEE Energy Audit Guidelines (2nd Edition, 2022) both define three levels of energy audit, each progressively deeper, more data-intensive, and more actionable. Choosing the right level depends on the facility’s size, complexity, budget, and intended end-use of the audit findings.
Level 1: Preliminary (Walk-Through) Audit
The preliminary audit—also called a walk-through or reconnaissance audit—is a rapid, low-cost assessment designed to identify obvious inefficiencies, establish a baseline energy profile, and determine whether deeper investigation is warranted.
| Parameter | Typical Value |
| Duration (typical facility) | 1–3 days on-site |
| Team size | 1–2 auditors |
| Data requirement | Utility bills (12–24 months), single-line diagrams, floor plans |
| Instrumentation | Visual inspection; basic spot meters (lux, clamp meter) |
| Report depth | High-level EPI comparison; qualitative ECM list |
| Cost range (Indian market) | INR 25,000–75,000 (MSME scale) |
| Typical savings identified | 5–10% of energy costs (low-hanging fruit) |
| BEE Classification | Type I Audit |
Key Outputs:
- Energy Performance Index (EPI) benchmarked against BEE sector norms
- Qualitative list of Energy Conservation Measures (ECMs) — no detailed engineering
- Recommendation on whether to proceed to Level 2 or Level 3
- Preliminary estimate of aggregate savings potential
Level 2: General (Detailed) Audit
The general audit goes beyond visual inspection to include sub-metered measurements, load profiling, and quantified analysis of individual energy-consuming systems. This is the most common type of audit conducted under BEE’s Designated Consumer (DC) framework and the PAT scheme.
| Parameter | Typical Value |
| Duration (typical facility) | 3–10 days on-site + 2–4 weeks analysis |
| Team size | 3–6 auditors (electrical, mechanical, process) |
| Data requirement | Full utility data, equipment nameplates, production logs, DG records |
| Instrumentation | Power analysers, thermal imaging, data loggers, flow meters |
| Report depth | ECM-wise savings, cost, investment and payback |
| Cost range (Indian market) | INR 1.5L–6L (medium-large facility) |
| Typical savings identified | 15–25% of total energy costs |
| BEE Classification | Type II Audit |
Key Outputs:
- Calibrated baseline energy model by system (lighting, HVAC, motors, utilities)
- Quantified ECMs with engineering-level savings estimates (+/- 20% accuracy)
- Prioritised implementation roadmap (short/medium/long term)
- Preliminary financial analysis (simple payback, NPV)
Level 3: Investment-Grade Audit (IGA)
The Investment-Grade Audit is the highest level of rigour, designed to support capital investment decisions, Performance Contracting, or financing through institutions like SIDBI’s Energy Efficiency Finance Platform (EEFP) or World Bank-IFC instruments. It provides the precision required to make firm commitments on savings.
| Parameter | Typical Value |
| Duration (typical facility) | 2–6 weeks on-site + 6–12 weeks analysis |
| Team size | 6–15 specialists + energy modelling engineer |
| Data requirement | All Level 2 data + engineering drawings, P&IDs, O&M records (3–5 yrs) |
| Instrumentation | Continuous data loggers (15-min interval), calibrated analysers |
| Report depth | Guaranteed savings potential; financial model with sensitivity analysis |
| Cost range (Indian market) | INR 8L–30L+ (large industrial complex) |
| Typical savings identified | 20–40%+ with high confidence (±10% accuracy) |
| BEE Classification | Type III Audit |
Key Outputs:
- Calibrated dynamic energy model (EnergyPlus / eQUEST / DesignBuilder)
- Guaranteed savings with performance risk allocation (used in ESCO contracts)
- Detailed M&V plan per IPMVP (EVO, 2022)
- Full financial model: IRR, NPV, DSCR, payback under multiple scenarios
- Project implementation specification ready for tender
| Auditor’s Practical Tip |
| In my experience, most medium-sized Indian factories (connected load 500 kW – 5 MW) derive the best cost-benefit from a Level 2 audit. The Level 3 IGA is essential when pursuing ESCO contracts, BEE star-rating certification, PAT cycle compliance, or infrastructure financing. For MSME units with <500 kW load, a Level 1 audit with targeted Level 2 deep-dives on the top 3 energy consumers (typically compressed air, HVAC, and lighting) provides the fastest return on the audit investment.
— Ar. Priya Nair, BEE-CEA No. CEA-2019-04881 |
Section 2: Energy Audit Process — Step by Step
A rigorous energy audit follows a structured, reproducible methodology. The following five-stage process is aligned with BEE Energy Audit Guidelines (2022), ASHRAE 211-2018, and ISO 50001:2018 Clause 6.3 (Energy Review).
Step 1: Data Collection & Pre-Audit Preparation
The quality of an energy audit is determined largely by the quality of its inputs. Pre-audit data collection should begin 2–3 weeks before the site visit.
Energy & Utility Data (12–36 months):
- Electricity bills: kWh consumed, kVA demand, power factor charges, ToD tariff details
- Furnace oil / HSD / LPG / natural gas consumption logs
- DG set running hours, fuel consumption, maintenance records
- Water consumption data (if steam or cooling-tower-intensive process)
- Production/output data correlated with energy use (products per kWh baseline)
Equipment & Infrastructure Data:
- Single-line electrical diagrams (SLD) — up to 11 kV level
- Equipment list with nameplate ratings (motors, transformers, compressors, chillers)
- HVAC system layout, chiller COP design data
- Lighting schedule and lumen design data (where available)
- Compressed air system P&ID and pressure ratings
Operational Data:
- Shift schedules and production calendars
- Occupancy patterns (for commercial/mixed facilities)
- Maintenance records for key energy plant
- Any previous audit reports or energy improvement records
Step 2: Energy Benchmarking
Benchmarking places the facility’s energy intensity in the context of industry peers and regulatory norms. It is the foundation of the audit narrative—quantifying the gap between current performance and best-in-class.
| Benchmark Metric | Description | BEE Reference Sector |
| Specific Energy Consumption (SEC) | kWh or GJ per unit of output (tonne, m2, piece) | All 13 PAT sectors |
| Energy Performance Index (EPI) | kWh/m2/year (buildings) or kWh/tonne (industry) | Cement, Steel, Textiles, etc. |
| Power Factor (PF) | Average monthly PF (target: >0.95) | All sectors |
| Load Factor | Average demand vs. contract demand | All sectors |
| Transformer Efficiency | No-load + load losses as % of throughput | BEE Distribution Transformer norms |
| Motor System Efficiency | Overall motor system efficiency (%) | BEE Motor Star Labelling |
| Compressed Air Specific Power | kW/(m3/min) at delivery pressure | BEE Compressor Guidelines |
BEE’s National Energy Benchmarks cover 13 notified PAT sectors. For non-PAT sectors, TERI’s Industrial Energy Benchmarking database (2021) and the OECD/IEA databases provide sector-specific EPI ranges. For buildings, ECBC 2023 prescribes EPI targets by climate zone and occupancy type.
| International Benchmark: NYSERDA Industrial Program (2022) |
| The New York State Energy Research and Development Authority (NYSERDA) Industrial and Process Efficiency Program conducted 847 Level 2 audits across New York State manufacturing facilities between 2019 and 2022. Key findings:
– Average energy savings identified: 18.3% of total annual energy cost – Average electrical savings: 22.1% of electricity consumption – Average implementation rate within 18 months: 64% of identified ECMs – Top three ECM categories: Compressed air (28%), Lighting (24%), Motor systems (19%) – Average simple payback of implemented measures: 2.3 years
Source: NYSERDA, ‘Industrial and Process Efficiency Program Impact Evaluation Report’, Albany, NY, 2022. These figures are cited here for international benchmarking context; actual savings will vary by Indian facility vintage, tariff structure, and sector. |
Step 3: On-Site Measurements & Instrumentation
Measurements convert estimates into evidence. A BEE-CEA uses calibrated, certified instruments. Measurement accuracy directly determines the reliability of savings projections and the viability of subsequent financing or contracting.
| Measurement | Instrument | BEE/IS Standard | Accuracy Req. |
| Electrical demand & quality | 3-phase power analyser (data logger) | IS 14697 / IEC 61000-4 | +/- 0.5% |
| Power factor profile | PF meter / SCADA data | BEE Monitoring Protocol | +/- 0.01 PF |
| Motor loading | Clamp-on power meter + tachometer | BEE Motor Assessment | +/- 1% |
| Illuminance levels | Digital lux meter | IS 3646 / BEE Lighting | +/- 3% |
| Chiller efficiency (COP) | Energy meter + flow/temp sensors | ASHRAE 14 / IPMVP | +/- 2% |
| Compressed air flow | Thermal mass flow meter / ultrasonic | ISO 1217 | +/- 2% |
| Steam trap condition | Ultrasonic / infrared thermometer | IS 4614 | Qualitative |
| Building envelope losses | Infrared thermography camera | ASTM E1149 | Qualitative |
| Combustion efficiency | Flue gas analyser (O2, CO, CO2) | BEE Boiler Guidelines | +/- 0.1% O2 |
| Compressed air leaks | Ultrasonic leak detector | BEE CA Guidelines | Qualitative |
Measurement best practice: Measurements must be taken under representative operating conditions — typically 70–90% of rated load for motor systems. BEE requires a minimum of 3 measurement cycles for critical loads; IPMVP (EVO, 2022) recommends continuous 7–14 day baseline logging for investment-grade audits.
Step 4: Analysis — Energy Balance & ECM Development
Analysis transforms raw measurement data into actionable intelligence. The energy balance (also called the energy mass balance) accounts for every unit of energy entering and leaving the system boundary. The unaccounted residual must be less than 5% for a credible audit (BEE, 2022).
Energy Balance Framework:
- Define system boundary (entire facility or sub-system)
- Quantify all energy inputs: grid electricity, DG, furnace oil, gas, biomass, steam purchased
- Quantify useful outputs: products, services, conditioned space
- Quantify all losses: heat, friction, lighting heat gain, compressor heat rejection
- Identify and quantify each ECM by system
- Validate balance: Input = Output + Losses +/- Storage change
ECM Prioritisation Matrix (per BEE Audit Manual):
| Priority | Payback Period | Investment | Risk | Examples |
| Tier 1 (Quick Wins) | < 1 year | < INR 5L | Very Low | Power factor correction, lighting controls, leak repair |
| Tier 2 (Medium Term) | 1–3 years | INR 5L–50L | Low–Medium | LED retrofit, VFD on motors, HVAC controls upgrade |
| Tier 3 (Capital Projects) | 3–7 years | > INR 50L | Medium | Chiller replacement, heat recovery, solar rooftop |
| Tier 4 (Strategic) | > 7 years | Major Capex | High | Process redesign, cogeneration, waste heat power |
Step 5: Reporting
The energy audit report is the final deliverable and the primary instrument for driving implementation. A BEE-standard Level 2 audit report contains the following mandatory sections:
- Executive Summary (1–2 pages): Top-line findings, total savings potential, aggregate investment, overall payback
- Facility Profile: Operating parameters, production data, utility tariff structure, historical energy spend
- Energy Baseline: Monthly consumption trends, load profiling, EPI vs. benchmark
- System-Wise Analysis: Detailed findings for each energy system (electrical, HVAC, compressed air, lighting, process heat)
- ECM Details: For each measure—description, savings calculation methodology, baseline, projected savings (kWh/year, INR/year), implementation cost, payback, priority
- Financial Analysis: Project economics at facility level and ECM level (NPV, IRR, simple payback, CO2 reduction)
- Implementation Roadmap: Phased action plan with responsibilities, timelines, KPIs and monitoring metrics
- Measurement & Verification Plan: Aligned with IPMVP Option A/B/C as appropriate
- Annexures: Raw data, instrument calibration certificates, calculation sheets, photographs
Section 3: Indian Government Schemes & Regulatory Framework
3.1 Bureau of Energy Efficiency (BEE) — Accreditation Framework
The Bureau of Energy Efficiency, established under the Energy Conservation Act 2001 (amended 2022), is India’s apex regulatory body for energy efficiency. The BEE administers the accreditation framework for energy auditors, energy managers, and energy service companies.
| Credential | Examination | Requirement | Relevance |
| BEE Certified Energy Manager (CEM) | National exam (Sections 1-4) | Engineering degree + exam pass | Mandatory for DCs > 10 MW |
| BEE Certified Energy Auditor (CEA) | National exam + practical | CEM + 3 yrs experience | Required to sign audit reports for DCs |
| BEE Accredited Energy Auditor Firm | Firm registration | Min. 2 CEAs on roll | Required for PAT-linked audits |
| BEE Star Label Verifier | Product-specific certification | CEA + sector training | Required for BEE Star Label renewals |
As of March 2024, BEE has certified over 19,000 Energy Managers and 11,500 Energy Auditors across India (BEE Annual Report, 2023-24). The Energy Conservation (Amendment) Act 2022 has expanded BEE’s mandate to include carbon credit trading under the Carbon Credit Trading Scheme (CCTS) and green hydrogen certification.
3.2 Perform, Achieve and Trade (PAT) Scheme
The PAT scheme is India’s flagship market-based mechanism to enhance energy efficiency in large energy-intensive industries. Launched in 2012 under the National Mission for Enhanced Energy Efficiency (NMEEE), PAT covers 13 industrial sectors including Cement, Steel, Aluminium, Textiles, Pulp & Paper, Fertilisers, Chlor-Alkali, and Thermal Power Plants.
| PAT Cycle | Period | No. of DCs | Target SEC Reduction | Actual Achievement |
| Cycle I | 2012–2015 | 478 | ~6.686 MTOE | 8.67 MTOE (130% of target) |
| Cycle II | 2016–2019 | 621 | ~8.869 MTOE | 14.08 MTOE (159% of target) |
| Cycle III | 2017–2020 | 116 | ~1.277 MTOE | ~2.46 MTOE (193% of target) |
| Cycle IV | 2018–2021 | 110 | Data under review | Ongoing verification |
| Cycle V-VI | 2019–2025 | 1,073 DCs | Sector-specific | Ongoing |
How PAT Works:
- Designated Consumers (DCs) receive a specific energy consumption (SEC) target by BEE
- DCs that over-achieve earn Energy Saving Certificates (ESCerts) — 1 ESCert = 1 tonne of oil equivalent saved
- Under-achieving DCs must purchase ESCerts from over-achievers on the Power Exchange (IEX/PXIL)
- ESCert prices have ranged from INR 200 to INR 2,400 per tonne (IEX trading data, 2023)
- Annual energy audits by BEE-accredited firms are mandatory for all PAT DCs
3.3 Other Key Schemes & Standards
| Scheme / Standard | Administering Body | Key Benefit for Industry |
| Energy Conservation Building Code (ECBC) 2023 | BEE / MoP | Mandatory EPI compliance for new commercial/industrial buildings |
| BEE MSME Energy Efficiency Scheme | BEE / Ministry of MSME | Subsidised audits + technology upgrade loans at 3% concessional rate |
| National Mission for Enhanced Energy Efficiency (NMEEE) | MoP | Umbrella for PAT, MTEE, EEFP, and SEEEP schemes |
| Energy Efficiency Finance Platform (EEFP) | BEE / SIDBI / KfW | Credit guarantee + project finance for ECM investments |
| ISO 50001:2018 Energy Management System | BIS (India licensee) | International EMS standard; required for export-market compliance |
| GreenCo Rating System | CII–Godrej GBC | Voluntary green manufacturing certification integrating energy KPIs |
| Carbon Credit Trading Scheme (CCTS) | BEE (notified 2023) | Carbon markets linked to ESCerts; emerging compliance market |
| UJALA Programme (LEDs) | EESL / MoP | Subsidised LED supply chain enabling rapid lighting ECM implementation |
Section 4: Energy Conservation Measures — Systems Deep Dive
4.1 Lighting Systems
Lighting typically accounts for 10–25% of electricity consumption in Indian manufacturing facilities (BEE, 2023). Modern lighting technology has transformed the ROI on lighting upgrades, making them among the fastest-payback ECMs available.
| Lighting ECM | Typical Savings | Simple Payback | Implementation Complexity |
| T12/T8 fluorescent to LED tube replacement | 40–60% on lighting circuit | 1.2–2.0 years | Low |
| High Bay Metal Halide to LED High Bay | 50–70% on high-bay circuit | 1.0–1.8 years | Low–Medium |
| Lighting controls (occupancy sensors, daylight dimming) | 20–40% additional savings | 1.0–2.5 years | Medium |
| Centralised Lighting Management System (CLMS) | 30–50% on controlled circuits | 2.0–3.5 years | Medium–High |
| Natural daylight integration (skylights, light shelves) | Reduces daytime base load 15–30% | 3–7 years | High (construction) |
| Task lighting redesign (reduce ambient, boost task) | 15–25% total lighting load | 1.5–3.0 years | Medium |
| Road/yard lighting: HPS to LED + smart controls | 60–75% on outdoor circuit | 1.5–2.5 years | Low–Medium |
| Field Note: Lighting ECM — Pune Auto Ancillary Unit (Level 2 Audit, 2023) |
| Facility: 18,000 m2 machining + assembly plant, Pimpri-Chinchwad, Pune
Baseline: 620 nos. 250W Metal Halide + 1,840 nos. 36W fluorescent (T8); total lighting load ~290 kW ECM: Full LED retrofit (100W LED high bay + 18W LED tube) + occupancy sensors in stores and corridors Projected savings: 172 kW demand reduction; 8.5 lakh kWh/year At INR 8.20/kWh effective tariff: INR 69.7 lakh/year savings Implementation cost: INR 68 lakh (supply + installation) Simple payback: 11.7 months | CO2 reduction: 680 tCO2/year BEE ESCerts eligible: ~0.24 ESCerts (marginal; lighting ECMs are not primary PAT metrics) Status: Implemented Q1 2024; M&V after 6 months confirms 91% of projected savings achieved. |
4.2 HVAC & Refrigeration Systems
In facilities with process cooling, air-conditioning, or cold-chain requirements, HVAC can represent 30–55% of total electricity consumption. Chiller plants are typically the single largest electrical load in a pharmaceutical, food & beverage, or IT/ITeS facility.
| HVAC ECM | Typical Savings | Simple Payback | Notes |
| Chiller plant optimisation (controls + sequencing) | 10–20% on chiller plant | 0.5–1.5 years | No capital, controls upgrade only |
| Chiller replacement (COP 4.0 > COP 6.5+) | 30–40% on compressor power | 3.5–6.0 years | Eligible for EEFP financing |
| Variable frequency drives on AHU fans | 40–60% on fan power | 1.5–3.0 years | Cube law savings very effective |
| VFD on cooling tower fans + pumps | 30–50% on CT auxiliary | 1.5–2.5 years | Low cost, high return |
| Cooling tower performance upgrade (fills, drift eliminators) | 5–15% on CT overall | 1.0–2.0 years | Simple, often deferred |
| Building envelope improvement (roof insulation, glazing) | 10–25% on AC load | 3–8 years | Most effective at design stage |
| Economiser (free cooling) cycle activation | 10–30% on total cooling | 1.0–3.0 years | Climate-dependent (applicable in north India winters) |
| Thermal Energy Storage (TES) — ice or chilled water | Demand charge reduction 15–30% | 4–7 years | Valuable in high ToD tariff zones |
Auditor’s Note: The Coefficient of Performance (COP) of chillers in Indian facilities older than 10 years is frequently found to be 30–50% below nameplate design values due to fouled heat exchangers, refrigerant undercharge, and poorly calibrated controls. In several audits, chiller tube cleaning alone (cost: INR 15,000–40,000 per chiller) restored 8–12% of COP within a single maintenance event — arguably the highest-return single intervention in any audit.
4.3 Electric Motor Systems
Motor systems — including the motor, drive train, driven equipment (pump, fan, compressor), and controls — account for approximately 64% of industrial electricity consumption globally (IEA, 2023) and up to 70% in India’s energy-intensive sectors. The BEE estimates that motor system optimisation alone offers a national savings potential of 23–30 billion kWh annually.
| Motor ECM | Typical Savings | Simple Payback | BEE Programme |
| IE3 (Premium Efficiency) motor replacement on rewound motors | 3–8% on motor | 2–4 years | BEE Motor Star Label IE3/IE4 |
| Variable Frequency Drive on centrifugal loads | 25–60% on driven load | 1.5–3.5 years | BEE VFD Handbook 2022 |
| Right-sizing over-loaded/under-loaded motors | 5–15% on motor | 1–3 years | BEE Motor Assessment Tool |
| Power factor correction at LT panel (capacitor banks) | 5–12% reduction in kVA billing | 1.0–2.0 years | CERC ToD tariff benefit |
| Automatic PF controllers (APFC panels) | Maintains PF >0.95 dynamically | 1.0–2.0 years | Penalty avoidance value |
| Compressed air system leak reduction | 10–30% on CA system | 0.5–1.5 years | BEE CA Guide, 2022 |
| Compressed air pressure optimisation (reduce header pressure) | 5–10% per 1 bar reduction | Near zero | Operational change only |
| Motor rewinding quality control (loss monitoring) | Avoids 5–20% efficiency degradation | 1–2 years | BEE Rewinding Standard |
| Green Building Alliance (GBA) Data Point — Motor Systems |
| The Green Building Alliance’s Pittsburgh 2030 District industrial energy study (2021) tracked 14 manufacturing facilities that implemented comprehensive motor system upgrades including IE3 motors + VFDs + system controls over a 3-year period. Key findings:
– Average electrical savings: 31% of total facility electricity consumption – Average demand reduction: 24% (significant tariff savings in US demand-charge structures) – All projects achieved payback within 3.2 years on average – Four facilities qualified for Green Building Certification based on energy performance alone
Source: Green Building Alliance, ‘Pittsburgh 2030 District Industrial Pilot Study’, Pittsburgh, PA, 2021. Note: Indian facilities may see different savings due to different motor vintage profiles, tariff structures, and load patterns. The GBA data is cited for international benchmarking context. |
Section 5: Case Study — ROI from a Real Indian Industrial Facility
| Case Study Overview |
| Facility Type: Medium-scale textile spinning and weaving mill
Location: Coimbatore, Tamil Nadu Annual Production: ~4,200 tonnes of yarn + woven fabric Connected Load: 3.2 MVA (sanctioned); average demand ~1,850 kW Annual Electricity Consumption (Baseline Year): 1,21,60,000 kWh (121.6 lakh units) Annual Electricity Cost (Baseline): INR 8.51 crore (@ TANGEDCO HT-II tariff, INR 7.00/kWh avg.) Audit Type: Level 2 (General Energy Audit) — conducted December 2022 Audit Firm: Accredited by BEE; lead auditor: Ar. Priya Nair, CEA No. CEA-2019-04881 Audit Cost: INR 4.20 lakh (all-inclusive) |
5.1 Pre-Audit Benchmarking
The facility’s Specific Energy Consumption (SEC) was calculated at 2.895 kWh/kg of output (yarn + fabric combined). BEE’s notified SEC norm for the textile sector (spinning + weaving composite) is 2.4–2.6 kWh/kg for facilities of this vintage and product mix. The facility was consuming approximately 11–20% more energy per unit of output than the BEE benchmark — confirming significant savings potential before a single measurement was taken.
5.2 Key Findings by System
| System | Baseline Consumption (kWh/yr) | Finding | ECM Identified |
| Ring frame motors (120 nos.) | 38,40,000 | Average loading: 62%; 34 motors rewound, degraded | IE3 replacement (34 nos.) + VFD on 18 motors |
| Humidification plant (HVAC) | 22,80,000 | Chiller COP: 2.8 vs. design 4.5; fouled tubes; no VFD on AHUs | Tube cleaning + 2 AHU VFDs + chiller controls |
| Lighting — shop floor & utilities | 9,60,000 | MH + T8 fluorescents; no controls; 24-hr operation | Full LED retrofit + occupancy controls |
| Compressed air (weaving shed) | 16,40,000 | Header pressure 7.2 bar; identified 18 leaks; no VSD on compressors | Leak repair + pressure reduction to 6.0 bar + 2 VSD compressors |
| Power Factor & transformer losses | ~4,80,000 kWh equiv. | Average PF: 0.82; no APFC; 3 transformers at <40% loading | APFC panel + transformer consolidation |
| Utilities (boiler, effluent, DG) | 29,60,000 | Boiler efficiency 76% vs. target 85%; DG at part load | Boiler O2 trim + waste heat recovery |
5.3 ECM Summary & Financial Analysis
| ECM Package | Annual Savings (kWh) | Annual Savings (INR) | Investment (INR) | Payback (Years) | CO2 Reduction (tCO2) |
| Motor replacement & VFDs | 5,10,000 | 35,70,000 | 82,00,000 | 2.30 | 408 |
| HVAC optimisation package | 6,80,000 | 47,60,000 | 38,50,000 | 0.81 | 544 |
| Lighting LED retrofit + controls | 6,20,000 | 43,40,000 | 52,00,000 | 1.20 | 496 |
| Compressed air system upgrade | 5,90,000 | 41,30,000 | 44,00,000 | 1.07 | 472 |
| APFC + transformer consolidation | 2,40,000 | 16,80,000 | 12,50,000 | 0.74 | 192 |
| Boiler & utilities upgrade | 4,80,000 | 33,60,000 | 95,00,000 | 2.83 | 384 |
| TOTAL | 31,20,000 | 2,18,40,000 | 3,24,00,000 | 1.48 (wtd. avg.) | 2,496 |
Total savings identified: 31.2 lakh kWh/year = 25.7% of baseline consumption
Total annual monetary savings: INR 2.18 crore/year
Total capital investment (all ECMs): INR 3.24 crore
Weighted average simple payback: 1.48 years
10-year Net Present Value (@ 12% discount rate): INR 9.84 crore
Internal Rate of Return (IRR): 68.2%
CO2 emission reduction: ~2,496 tCO2/year (equivalent to planting ~1,12,000 trees)
5.4 Implementation Status (24-Month Follow-Up, December 2024)
The facility management proceeded with ECM implementation in two phases:
Phase 1 (January–June 2023 — Tier 1 + Tier 2 ECMs):
- HVAC optimisation, APFC panel, compressed air leak repair, lighting retrofit
- Investment: INR 1.47 crore | Achieved savings: INR 1.08 crore in first 12 months
- M&V confirmed 97% of projected savings (IPMVP Option B applied to motor loads)
Phase 2 (July 2023–March 2024 — Tier 3 ECMs):
- Motor replacement programme, boiler waste heat recovery, VSD compressors
- Investment: INR 1.77 crore | Annualised savings post-implementation: INR 1.10 crore
Cumulative 24-month financial performance:
- Total invested: INR 3.24 crore (as planned)
- Total savings achieved (24 months): INR 2.18 crore
- Cumulative payback progress: 67.3% of investment recovered in 24 months
- Projected full payback: Month 34 (tracking slightly ahead of 1.48-year average payback due to tariff increase in TANGEDCO Jan 2024 to INR 7.42/kWh)
- PAT Cycle VI: Facility expects to earn 1.8 ESCerts from combined motor + process improvements
| Auditor’s Reflection |
| This case illustrates three principles I apply to every audit:
1. The HVAC and compressed air systems together delivered 63% of total savings with only 25% of total investment — confirming the ‘system optimisation before equipment replacement’ principle. 2. The audit cost (INR 4.20 lakh) was recovered in under 3 weeks of implemented savings. The audit ROI itself was over 5,000%. 3. Power factor correction, often dismissed as trivial, delivered a payback of under 9 months — the fastest-returning single project in the portfolio.
— Ar. Priya Nair, BEE-CEA No. CEA-2019-04881 |
Section 6: Comprehensive Energy Audit Checklist
The following checklist is designed for use by a BEE-CEA conducting a Level 2 audit. It may also be self-administered by an energy manager as a preliminary gap assessment. Check boxes indicate items to be verified or measured during the audit.
Module A: Pre-Audit Data Collection
A1 — Energy Bills & Utility Records
☐ 12–24 months of electricity bills (kWh, kVA, PF charges, ToD breakup)
☐ Sanctioned load and contract demand documentation
☐ Fuel purchase records: diesel (DG), LPG, HSD, natural gas (last 24 months)
☐ Boiler fuel consumption logs (if applicable)
☐ DG set running hours, fuel consumption, load profile
☐ Water consumption data (if process water / cooling tower involved)
☐ Solar PV generation data (if applicable)
A2 — Equipment & Infrastructure Data
☐ Single Line Diagram (SLD) — current, up to HT level
☐ Equipment list with nameplate ratings (all motors > 0.5 kW)
☐ HVAC equipment list (chillers, AHUs, FCUs, cooling towers) with design COP/efficiency
☐ Transformer capacity and age; no-load and load loss certificates
☐ Compressed air system layout, receiver capacity, design pressure
☐ Lighting schedule: fixture types, wattages, lamps per fitting, operating hours
☐ Production/process flow diagram
A3 — Operational Data
☐ Shift schedule and production calendar (last 12 months)
☐ Production output data aligned with energy consumption periods
☐ Maintenance records for transformers, DG, chillers, boilers, compressors
☐ Previous energy audit reports (if any)
☐ Any existing energy management targets or commitments (ISO 50001, PAT, etc.)
Module B: On-Site Electrical Measurements
B1 — Power Quality & Demand
☐ 3-phase voltage and current (all incomers and major feeders) — instantaneous + trended
☐ Power factor measurement at HT incomer, LT main board, and at major loads
☐ Harmonic distortion (THDv, THDi) at main bus and VFD-fed equipment
☐ Maximum demand trend vs. contract demand — last 12 months
☐ ToD load profile — peak, off-peak, night hours
☐ Voltage unbalance check at all main distribution boards
☐ Transformer loading level (% of rated capacity) — spot and trended
☐ Neutral current measurement (indicator of harmonics / unbalance)
B2 — Motor Systems
☐ Motor kW input measurement (clamp meter) — all motors > 5 kW
☐ Motor speed (tachometer) vs. rated RPM — all measured motors
☐ Motor surface temperature (infrared thermometer) — check for overheating
☐ Motor efficiency class identification (IE1/IE2/IE3/IE4) from nameplate
☐ Loading factor calculation: measured kW / rated kW (flag <60% or >95%)
☐ Belt drive condition and alignment (visual + vibration check)
☐ VFD presence and set frequency — document all drives and set points
☐ Pump/fan performance: flow rate, head, efficiency vs. design curve
B3 — Lighting Assessment
☐ Illuminance survey (lux meter) — all task areas vs. IS 3646 / BEE norms
☐ Lighting load measurement (kW) by circuit/zone/floor
☐ Lamp type, wattage, lumen output, and CRI documentation
☐ Lighting controls assessment (timers, occupancy, daylight sensors — present/absent)
☐ Operating hours by zone (production, offices, utilities, outdoor)
☐ Burning hours per lamp type (for re-lamping cost calculation)
Module C: HVAC & Refrigeration Measurements
C1 — Chiller Plant
☐ Chiller kW input measurement (power analyser)
☐ Chilled water supply and return temperature (calibrated thermometer)
☐ Chilled water flow rate (ultrasonic flow meter or existing flow meter)
☐ Chiller COP calculation: (kW cooling / kW input) — compare to design and ECBC norm
☐ Condenser water supply and return temperature
☐ Condenser approach temperature (indicator of fouling)
☐ Refrigerant pressure readings (suction, discharge)
☐ Chiller part-load performance (measure at 50%, 75%, 100% load if possible)
C2 — Cooling Towers & Pumps
☐ Cooling tower fan power consumption
☐ Cooling tower approach and range temperatures
☐ Wet bulb temperature (psychrometer) for CT performance calculation
☐ CT fan VFD presence; speed set point
☐ Condenser water pump kW input; flow rate; VFD presence
☐ Chilled water pump kW input; differential pressure; VFD presence
C3 — Air Handling & Distribution
☐ AHU fan kW input and airflow measurement (anemometer at grilles or duct traverse)
☐ Supply air and return air temperatures
☐ AHU filter differential pressure (flag if >2x design — indicates cleaning required)
☐ Outside air fraction assessment (check for excessive OA infiltration)
☐ Duct leakage assessment (visual; infrared thermography on accessible ducts)
Module D: Compressed Air Systems
D1 — Generation
☐ Compressor kW input (power analyser)
☐ Compressor discharge pressure (at header) vs. design pressure
☐ Compressor specific power: kW/(m3/min) — compare to BEE benchmark of 4.0–5.5 kW/(m3/min)
☐ Intercooler and aftercooler performance (temperature measurements)
☐ Compressor loading pattern: % loaded vs. unloaded time
☐ VSD (variable speed drive) presence on compressor — if absent, flag for ECM
D2 — Distribution & End Use
☐ Ultrasonic leak survey — tag and quantify all leaks identified
☐ Estimated leak rate as % of total CA generation (target: <5%)
☐ Header pressure stability trend (pressure drop during weekends = leak indicator)
☐ Pressure drop across distribution pipework (should be <0.3 bar from header to end use)
☐ Air quality at point of use: dew point, oil content (if critical process)
☐ Misuse assessment: CA used for cleaning clothing / personnel (flag — prohibited + wasteful)
☐ Condensate drain condition: manual vs. timer vs. zero-loss auto drains
Module E: Thermal Energy Systems (Boilers, Furnaces, Heat Recovery)
E1 — Boiler
☐ Flue gas analysis: O2, CO, CO2, temperature (at economiser exit)
☐ Boiler efficiency calculation (indirect method per BEE boiler protocol)
☐ Blow-down rate as % of steam generation (target: <2% for treated water)
☐ Steam trap survey — test for failure mode (open/closed/leaking)
☐ Feed water temperature and pre-heating status
☐ Insulation condition on steam mains, valves, flanges (infrared thermography)
☐ Condensate recovery rate (% of steam condensate returned)
E2 — Furnaces & Process Heat
☐ Furnace flue gas temperature and analysis
☐ Furnace efficiency calculation (thermal / combustion)
☐ Waste heat availability from flue gas (temperature, flow rate)
☐ Insulation condition on furnace body (thermography)
☐ Combustion air pre-heating status (recuperator / regenerator present?)
Module F: Documentation & Reporting Readiness
F1 — Instruments & Data Quality
☐ All instruments carry valid calibration certificates (within 12 months)
☐ Measurement uncertainty documented for each instrument used
☐ Data logger deployment confirmed for minimum 7-day baseline period (Level 2)
☐ Photograph log maintained (minimum 1 photo per major ECM identified)
F2 — Report Checklist
☐ Executive summary (1–2 pages) drafted
☐ Facility energy baseline established and validated (closure within 5%)
☐ EPI calculated and benchmarked against BEE sector norm
☐ All ECMs documented with: description, savings calculation, investment, payback
☐ ECM prioritisation matrix included (Tier 1/2/3)
☐ Financial analysis: NPV, IRR, simple payback for each ECM and aggregate
☐ CO2 reduction quantified (use CERC emission factor 0.82 kgCO2/kWh for grid; state grid emission factor if available)
☐ M&V plan appended (IPMVP Option referenced)
☐ Instrument calibration certificates attached as annexure
☐ Report signed and stamped by BEE-CEA (mandatory for DC reports)
Section 7: International Best Practices
| Organisation / Standard | Key Best Practice | Applicability to India |
| ASHRAE 211-2018 | Defines Level 1/2/3 audit scope; mandatory for US LEED-EB compliance | BEE audit guidelines largely harmonised with ASHRAE 211; cross-recognition emerging |
| ISO 50001:2018 | Energy Management System (EnMS); Plan-Do-Check-Act energy framework | BIS harmonised standard; mandatory for export markets; BEE recommends for DCs |
| IPMVP (EVO, 2022) | Gold standard M&V framework; 4 options for savings verification | Required for ESCO contracts, EEFP financing; used in PAT verification |
| NYSERDA Industrial Program | Continuous improvement; post-audit implementation support; state-funded engineering assistance | BEE’s ESCO programme mirrors this; SEECs replication underway in several states |
| IEA Energy Efficiency Policy Toolkit | Mandatory audits for large consumers; voluntary for SMEs with incentives | EC Act 2001 (Amended 2022) mirrors this; BEE expanding mandatory DC list |
| EU Energy Efficiency Directive (EED) | 4-year mandatory audit cycle for large enterprises; SME incentive schemes | India’s PAT cycle structure is analogous; EU-India energy partnership active |
| ENERGY STAR (US EPA) | Portfolio Manager benchmarking tool; sector-specific EPI targets | BEE’s Star Labelling programme is India’s equivalent; bilateral cooperation exists |
| Green Building Alliance (GBA) | Industry-led voluntary targets; Pittsburgh 2030 District; peer benchmarking | CII-Godrej GBC GreenCo rating is India’s closest equivalent programme |
Best practice convergence: The global trend is towards continuous energy monitoring (as opposed to periodic audits), enabled by IoT sub-metering, cloud-based energy management platforms, and AI-driven anomaly detection. BEE’s forthcoming IEMS (Industrial Energy Management System) mandate for large DCs (expected notification in 2025) will align India with EU and US directions. Audit professionals should develop competence in digital energy monitoring to remain relevant in this evolving landscape.
