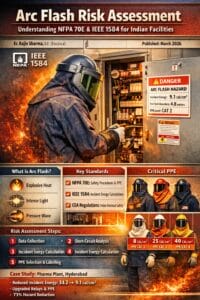

Arc Flash Risk Assessment: Understanding NFPA 70E & IEEE 1584 for Indian Facilities

On a routine maintenance morning at a textile mill near Surat, a switchboard operator opened the door of a 415 V Motor Control Centre (MCC) to check a tripped breaker — without any arc flash warning label on the panel, without arc-rated PPE, and without a written energised work permit. The resulting arc flash lasted less than a second. He survived, but sustained second-degree burns to his face and hands and was hospitalised for three weeks.

This incident is not an outlier. It is a pattern repeated across Indian industry every year — in cement plants, petrochemical facilities, steel mills, data centres, and commercial buildings — wherever electrical maintenance is performed on energised equipment without understanding the true thermal hazard present.

As a licensed electrical engineer who has conducted arc flash studies across more than 40 facilities spanning Maharashtra, Gujarat, and Tamil Nadu, I can state with certainty: the single most underestimated electrical hazard in India today is arc flash. It is not shock. It is not electrocution from direct contact. It is the explosive thermal and pressure event that occurs when an electric arc is inadvertently created in energised equipment.

This post provides a complete, methodical guide to understanding arc flash, conducting a compliant arc flash risk assessment, and implementing the findings — with specific reference to NFPA 70E (2024), IEEE 1584-2018, India’s Central Electricity Authority (CEA) Regulations, and the Electricity Act, 2003.



1. What Is Arc Flash? The Physics of a Thermal Event

An arc flash is a sudden, explosive release of energy caused by an electric arc — a plasma channel conducting current through ionised air between two conductors or between a conductor and ground. Unlike a shock hazard (current through the body), arc flash kills and injures through:

• Radiant heat — temperatures at the arc plasma can exceed 19,000 °C (hotter than the surface of the sun), generating intense infrared and ultraviolet radiation
• Blast pressure wave — rapidly expanding copper vapour and superheated air create a pressure wave comparable to an explosion
• Shrapnel and molten metal — vaporized conductors eject at speeds up to 1,600 km/h
• Intense light — can cause immediate and permanent blindness
• Sound — noise levels can exceed 140 dB, causing hearing damage

The energy released — called incident energy — is expressed in calories per square centimetre (cal/cm²) and is the central parameter around which all arc flash analysis revolves. To put it in context:

According to the NFPA, there are approximately 5,000 to 10,000 arc flash incidents in the United States alone each year, resulting in more than 400 fatalities and 2,000 hospitalizations (NFPA 70E Handbook, 2024). Indian statistics are significantly under-reported, but the National Crime Records Bureau (NCRB) Accidental Deaths & Suicides reports consistently log 3,000–4,000 electrocution-related deaths annually — a figure believed to vastly undercount industrial arc flash injuries.

---

2. Why Arc Flash Risk Assessments Are Not Optional in India

2.1 The Regulatory Landscape

Several Indian regulations create explicit — and legally enforceable — obligations for arc flash risk management:

Central Electricity Authority (Measures Relating to Safety and Electric Supply) Regulations, 2010 — Regulation 3(1) requires that every electrical installation be constructed, installed, protected, worked and maintained so as to prevent danger. Regulation 44 mandates that adequate protective equipment be provided for all persons working on electrical installations.

The Electricity Act, 2003, Section 53 — Empowers the CEA to specify safety requirements for the generation, transmission, distribution, trading, and use of electricity. Non-compliance can result in penalties and the suspension of operating licences.

The Factories Act, 1948, Section 7A — Imposes a general duty on occupiers of factories to ensure, so far as is reasonably practicable, the health, safety, and welfare of all workers. This includes protection from electrical hazards.

IS 3646 (Code of Practice for Interior Illumination) and IS 5216 (Safety Procedures and Practices in Electrical Work) — Provide supplementary Indian guidance on electrical safety practices.

While India does not yet mandate NFPA 70E compliance by statute, multinational corporations operating here (particularly in automotive, pharmaceutical, and oil & gas sectors) increasingly require it under their global EHS frameworks. More importantly, the physical hazard exists regardless of which regulation applies.

2.2 The Insurance and Liability Argument

Following an arc flash incident, Indian courts have increasingly cited the absence of a documented hazard assessment as evidence of employer negligence. Industrial insurers are beginning to require arc flash studies as a condition of policy renewal. The cost of a comprehensive study — typically ₹8–25 lakhs for a mid-sized facility — is a fraction of a single hospitalisation, equipment replacement, or legal settlement.

---

3. The Standards Framework: NFPA 70E, IEEE 1584, and How They Interact

Understanding the relationship between the two primary international standards is essential before beginning any study.

NFPA 70E – Standard for Electrical Safety in the Workplace (2024 Edition) Published by the National Fire Protection Association, this standard defines the programme requirements: the safety procedures, work permit systems, PPE selection process, training requirements, and the administrative framework for managing arc flash hazard. It introduces the concept of the Arc Flash Risk Assessment (Article 130.5) and specifies the PPE categories under Table 130.7(C)(15)(a) (the task-based method) and the incident energy analysis method.

IEEE 1584 – Guide for Performing Arc Flash Hazard Calculations (2018 Edition) Published by the Institute of Electrical and Electronics Engineers, this is the calculation engine. It provides empirically derived equations — validated through thousands of arc flash tests — for calculating incident energy and arc flash boundaries at specific equipment locations based on short-circuit current, working distance, gap between conductors, equipment type (open air, switchgear, MCC, cable), and protective device clearing time.

The two standards are complementary: IEEE 1584 tells you how much energy; NFPA 70E tells you what to do about it.

The 2018 revision of IEEE 1584 was a landmark update. The original 2002 model was based on a limited dataset; the 2018 model incorporated over 1,800 arc flash tests, added bus gap as a critical variable, introduced three equipment electrode configurations (VCB, VCBB, HCB), and significantly improved accuracy — particularly at voltages below 600 V and at higher fault currents, both of which are common in Indian distribution systems.

---

4. Step-by-Step Methodology for an Arc Flash Study

STEP 1 — Project Scoping and Data Gathering

The quality of an arc flash study is entirely dependent on the quality of its input data. This step is the most time-consuming and the most commonly underestimated.

What to collect:

Utility data:

• Maximum and minimum available fault current at the Point of Common Coupling (PCC), obtained formally from DISCOM (distribution company) — e.g., MSEDCL, TNEB, DGVCL
• Utility transformer impedance (%), KVA rating, and winding configuration
• Utility protective device type and clearing time (if available)

Transformer data:

• KVA rating, primary and secondary voltage, impedance (%)
• Winding configuration (Delta-Star, Star-Star), grounding method
• Location and nameplate photographs

Switchgear, MCC, and panel data:

• Manufacturer, model, voltage rating, bus ampacity
• Physical gap between conductors (bus gap) — critical for IEEE 1584-2018
• Equipment type/electrode configuration (open air, metal-clad switchgear, MCC bucket)
• Age and maintenance history

Protective device data (this is the heart of the study):

• Circuit breakers: manufacturer, model, frame size, trip unit type (thermal-magnetic, electronic), instantaneous setting, long-time and short-time delay settings
• Fuses: manufacturer, type, ampere rating, current-limiting or non-current-limiting
• Relay and CT data for medium-voltage systems
• Download trip unit settings files where possible; do not rely solely on single-line diagrams

Cable data:

• Size, type (XLPE/PVC), length, installation method (conduit, tray, direct burial)
• Needed for impedance calculation in short-circuit analysis

Field verification: This cannot be overstated. I have found, on nearly every study, that the actual installed protective device settings differ from the documented design — sometimes by many multiples. A facility in Pune had a 630 A breaker with its instantaneous trip disabled entirely; the arc flash incident energy at that panel was calculated at 52 cal/cm². The design drawings showed it at 18 cal/cm². Always verify in the field.

Software tools commonly used: ETAP, SKM PowerTools, EasyPower, DIgSILENT PowerFactory. For smaller facilities, manual calculation per IEEE 1584 equations is viable.

---

STEP 2 — Short-Circuit Analysis

Short-circuit analysis establishes the maximum bolted fault current at each node in the power system. This is the foundational calculation; all subsequent arc flash calculations depend on it.

Methodology: Using the data collected, build a system model incorporating:

• Utility source impedance (from DISCOM data)
• Transformer impedance
• Cable impedance (resistance and reactance at operating temperature)
• Motor contribution (running motors feed current into a fault; IEEE 1584 requires this be included)

Calculate the symmetrical short-circuit current (kA) at each bus. For Indian LV systems (415 V), fault currents typically range from 10 kA to 65 kA depending on transformer size and cable impedance. For MV systems (11 kV, 33 kV), fault currents of 12.5–25 kA are common.

Both maximum fault current (for incident energy calculation) and minimum fault current (for protective device coordination) must be calculated. Some equipment may present the worst arc flash hazard under minimum fault conditions if a breaker’s instantaneous trip does not operate.

Arcing current is not the same as bolted fault current. IEEE 1584-2018 provides equations to calculate arcing current from bolted fault current; arcing current is typically 50–85% of bolted fault current for LV systems. Both the 100% arcing current case and an 85% variation must be evaluated.

---

STEP 3 — Protective Device Coordination Study

Protective device coordination (also called selectivity analysis) ensures that the device closest to a fault operates first, minimising the scope of an outage and maximising system reliability. It is inseparable from arc flash analysis because clearing time is the single most influential variable in incident energy.

The relationship is approximately linear: double the clearing time → double the incident energy.

Time-Current Curves (TCC): Coordination is verified by plotting the time-current characteristics of all series protective devices on log-log graphs. Proper coordination requires that at any given fault current, the upstream device’s curve lies entirely above (i.e., operates slower than) the downstream device’s curve.

Common coordination problems found in Indian facilities:

• Mismatched fuse ratings creating regions of no coordination
• Electronic trip units with instantaneous settings set too high, causing long clearing times at arc fault current levels
• Relay settings not updated after system expansion
• Absence of coordination between utility protection and facility incomer breaker

NFPA 70E and IEEE 1584 interaction: For the arc flash calculation, we use the clearing time of the first upstream protective device that will operate to interrupt the arcing fault. If coordination is poor and multiple devices trip simultaneously, the actual clearing time may be longer than expected.

For Indian 11 kV systems: IDMT (Inverse Definite Minimum Time) overcurrent relays are standard. The relay characteristic curve (IEC Standard Inverse, Very Inverse, Extremely Inverse), along with Time Multiplier Setting (TMS) and Plug Setting (PS), must be modelled accurately.

---

STEP 4 — Incident Energy Calculation (IEEE 1584-2018)

This is the computational core of the study. For each piece of equipment where energised work may be performed, incident energy (cal/cm²) and arc flash boundary (mm) are calculated.

IEEE 1584-2018 Input Parameters:

1. System voltage (208 V to 15 kV)
2. Bolted fault current (kA) at the equipment bus
3. Gap between conductors (mm) — equipment-type specific
4. Electrode configuration — VCB (vertical conductors in a box), VCBB (vertical conductors, insulating barrier), HCB (horizontal conductors in a box)
5. Working distance (mm) — the distance from the arc source to the worker’s face/chest
6. Enclosure size — height, width, depth (mm) — new in 2018 model
7. Arcing fault duration (seconds) — derived from protective device clearing time

Standard working distances per NFPA 70E:

• Low-voltage switchgear: 610 mm (24 in)
• Low-voltage MCCs and panelboards: 455 mm (18 in)
• Cable junction boxes: 455 mm (18 in)
• Medium-voltage switchgear: 910 mm (36 in)

The calculation: The 2018 model uses a multi-step process involving interpolation across voltage, gap, and current ranges. Software tools automate this; manual calculation requires the full IEEE 1584-2018 calculation spreadsheet. The output is:

• Incident Energy (E) in cal/cm² at the specified working distance
• Arc Flash Boundary (AFB) — the distance at which incident energy equals 1.2 cal/cm² (the onset of a second-degree burn on unprotected skin)

Both 100% and 85% arcing current cases must be evaluated, and the higher incident energy result governs.

---

STEP 5 — Arc Flash Boundary Determination

The Arc Flash Boundary (AFB) is a calculated safety perimeter. Anyone inside this boundary during an arc flash event who is not wearing appropriate PPE may receive second-degree burns or worse.

NFPA 70E Article 130.5(B) requires the AFB to be identified as part of the arc flash risk assessment. It must be marked or communicated to all personnel who may approach the equipment.

Typical AFB values in Indian LV distribution systems:

In addition to the AFB, NFPA 70E defines:

• Limited Approach Boundary — relevant for shock hazard; unqualified persons must not cross without escort
• Restricted Approach Boundary — qualified persons only; insulated tools and PPE required

---

STEP 6 — PPE Selection

Once incident energy at each equipment location is known, PPE is selected to provide protection equal to or greater than the calculated incident energy.

NFPA 70E Article 130.7 provides two methods:

Method 1 — Incident Energy Analysis Method: The calculated incident energy (cal/cm²) directly determines the minimum Arc Thermal Performance Value (ATPV) or Energy Breakopen Threshold (EBT) rating of the arc-rated PPE. This is the preferred, most accurate method.

Method 2 — PPE Category Method (Table 130.7(C)(15)(a)): A simplified table-based approach that assigns PPE categories (1 through 4) based on task and equipment type — without requiring a full incident energy calculation. This method has limitations and must not be used if the available fault current or clearing times exceed the table’s boundaries.

PPE Categories under NFPA 70E:

PPE components that must be arc-rated:

• Arc-rated face shield or arc flash suit hood
• Arc-rated balaclava (if face shield is used)
• Arc-rated jacket, shirt, and trousers (or arc flash coverall)
• Arc-rated gloves (rubber insulating gloves with leather protectors for shock hazard)
• Arc-rated hard hat
• Safety glasses (always worn as base layer)
• Hearing protection
• Arc-rated leather work boots

PPE procurement in India: Quality arc-rated PPE to NFPA 70E and ASTM F1506/F2621 standards is available in India through suppliers including SKANWEAR (a leading arc flash PPE specialist operating in the Indian market, offering ATPV-rated garments tested to IEC 61482-1-1), BradyID (which provides arc flash labels, lockout/tagout products, and safety identification systems widely used in Indian manufacturing facilities), and international brands distributed locally.

SKANWEAR offers a range of arc flash suits from Category 2 (8 cal/cm²) through Category 4 (40 cal/cm²), and their garments are tested per IEC 61482-2 — the European equivalent standard widely accepted in Indian EHS programmes.

BradyID arc flash labels — compliant with NFPA 70E label requirements — include incident energy, working distance, PPE category, arc flash boundary, and nominal system voltage. Brady’s pre-printed and printable label systems are commonly used during the labelling phase of arc flash projects across Indian facilities.

Rubber insulating gloves must be dielectrically tested per IS 4770 (Indian Standard for rubber gloves for electrical purposes) or ASTM D120, with class selected for the system voltage.

---

STEP 7 — Equipment Labelling

NFPA 70E Article 130.5(H) requires that every piece of electrical equipment likely to require examination, adjustment, servicing, or maintenance while energised be labelled with arc flash hazard information.

Minimum label information (per NFPA 70E 2024):

1. Nominal system voltage
2. Arc flash boundary
3. At least one of: incident energy and corresponding working distance, PPE category, minimum arc rating of PPE, or site-specific level of PPE

Best practice label content (as recommended by BradyID and consistent with IEEE 1584 output):

• Equipment identification number
• Date of study
• Incident energy (cal/cm²) at working distance
• Working distance (mm)
• Arc flash boundary (mm/m)
• PPE category or minimum ATPV rating (cal/cm²)
• Nominal voltage
• Shock hazard boundaries (Limited and Restricted)
• Study software and revision number

Labels must be durable, legible, and field-verified — not covered by paint, grease, or other materials. Brady’s polyester and vinyl arc flash labels are rated for outdoor and industrial environments common in Indian facilities (chemical exposure, high humidity, direct sunlight).

---

5. Mini Case Study: Arc Flash Analysis at a Pharmaceutical Facility in Hyderabad

Background

A bulk drug API (Active Pharmaceutical Ingredient) manufacturing facility in the Genome Valley, Hyderabad, with a connected load of approximately 8 MVA, sought to comply with its parent company’s global EHS standard — which mandated an arc flash study per NFPA 70E and IEEE 1584 prior to any energised electrical maintenance.

The facility comprised one 33/11 kV utility receiving substation, three 11/0.415 kV transformers (2 × 1600 kVA, 1 × 1000 kVA), fifteen 415 V distribution boards, and forty-two motor control centres serving process areas including fermentation, purification, and solvent handling (classified hazardous area).

Initial Conditions (Pre-Study)

• No arc flash labels on any equipment
• No arc flash PPE on site (only standard cotton overalls)
• No written energised work permit system
• Utility fault level at 11 kV: 12.5 kA (confirmed from TSSPDCL)
• Protective device settings not verified since original commissioning (8 years prior)

Study Findings

Field verification revealed multiple discrepancies:

1. The 1600 kVA transformer No. 1 incomer breaker (630 A, Type ACB) had its short-time delay set to 400 ms — a setting retained from the original contractor’s default that was never reviewed. This single setting drove the incident energy at MCC-3 (heaviest loaded, closest to transformer) to 34.2 cal/cm² — Category 4, with an arc flash boundary of 4.8 metres.
2. Several 415 V distribution boards fed by long cable runs had incident energies below 4 cal/cm², well within Category 1.
3. The 11 kV switchgear, equipped with older electromagnetic relays, had clearing times exceeding 500 ms at arcing fault current, producing incident energies of 18–24 cal/cm² — Category 3 to 4.

Mitigation Measures Implemented

1. Breaker resetting: The 630 A ACB short-time delay was reduced from 400 ms to 80 ms (after confirming coordination with downstream devices). This single change reduced MCC-3 incident energy from 34.2 cal/cm² to 9.1 cal/cm² — a 73% reduction, dropping from Category 4 to Category 2.
2. 11 kV relay upgrades: Electromagnetic IDMT relays replaced with numerical relays (SEL or equivalent), allowing precise TMS settings and ultimately reducing clearing time to 140 ms at arcing current. Incident energy at 11 kV switchgear dropped from 21 cal/cm² to 7.8 cal/cm².
3. Zone-selective interlocking (ZSI): Implemented on the main LV switchboard to allow instantaneous tripping under fault conditions while maintaining coordination under normal load conditions.
4. PPE procurement: Based on the post-mitigation study results, Category 2 arc flash PPE (8 cal/cm² minimum ATPV) was procured for routine maintenance on most LV equipment, with Category 3 (25 cal/cm²) reserved for 11 kV work.
5. Labelling: 87 Brady arc flash labels were installed across all equipment.
6. Energised work permit system: Written procedure implemented per NFPA 70E Article 130.2.

Outcome

• Maximum incident energy reduced from 34.2 cal/cm² to 9.1 cal/cm² (primary distribution)
• Total PPE procurement cost: ₹6.8 lakhs
• Study and implementation cost: ₹14.2 lakhs
• Estimated avoided hospitalisation/compensation cost (based on one incident): ₹50+ lakhs
• Facility subsequently cleared by global EHS audit with zero arc flash findings

---

6. Energised Electrical Work Permits and the Hierarchy of Risk Control

NFPA 70E Article 130.2 requires that energised electrical work be performed only when one or more of the following conditions apply:

• De-energising creates a greater hazard (e.g., continuous process, life safety systems)
• De-energising is infeasible due to equipment design or operational limitations
• A written Energised Electrical Work Permit (EEWP) has been issued and approved

The hierarchy of risk control, as required by NFPA 70E and consistent with OSHA’s General Duty Clause (Section 5(a)(1)) and India’s Factories Act Section 7A, is:

1. Elimination — de-energise and establish an Electrically Safe Work Condition (LOTO per IS 5216 / NFPA 70E Article 120)
2. Substitution — redesign system to reduce fault energy (e.g., high-resistance grounding, current-limiting fuses)
3. Engineering controls — remote racking, remote operation, arc-resistant switchgear, ZSI
4. Administrative controls — written procedures, training, work permits, two-person rules
5. PPE — last line of defence, never the first

OSHA guidance on arc flash, while primarily applicable to US workplaces, is widely referenced in Indian industry as best-practice benchmarking. OSHA’s 29 CFR 1910.269 (Electric Power Generation, Transmission, and Distribution) and 1910.303 (Wiring Design and Protection) establish the regulatory framework within which PPE selection and hazard assessment are required. Indian EHS professionals increasingly benchmark against OSHA standards given the absence of an equivalent detailed Indian standard.

---

7. How Often Must Arc Flash Studies Be Repeated?

NFPA 70E Article 130.5(A) requires the arc flash risk assessment be reviewed and updated:

• When a major modification or renovation is made to the electrical distribution system
• At intervals not to exceed 5 years

Changes that necessitate immediate re-study include:

• Addition of new transformers or generators
• Changes to utility fault level (new DISCOM infrastructure)
• Modification of protective device settings
• Addition of significant motor loads
• Replacement of protective devices with different models

In practice, I recommend building arc flash study review into capital project procedures: any electrical project above ₹25 lakhs in value should trigger a scope review of the affected portion of the arc flash study.

---

8. Arc Flash in Medium-Voltage Systems: Special Considerations for India

India’s distribution infrastructure relies heavily on 11 kV (and to a lesser extent 33 kV) for industrial power delivery. Medium-voltage arc flash presents unique challenges:

• Higher available fault currents — though line impedance often limits these
• Slower protective devices — older facilities still use oil circuit breakers (OCBs) with mechanical trip mechanisms; clearing times of 500 ms to over 1 second are not unusual
• Larger bus gaps — MV equipment has larger electrode gaps, which can actually reduce incident energy compared to a naive calculation assuming LV gaps
• Vacuum and SF₆ interruption — modern Indian 11 kV switchgear uses vacuum circuit breakers (VCBs); SF₆ equipment is less common at distribution voltages

Key recommendation: Any 11 kV switchgear in India that uses electromagnetic relays or oil circuit breakers more than 10 years old should be treated as a high-priority arc flash hazard until a study confirms otherwise. Numerical relay replacement programmes — now actively supported by several state DISCOMs under their infrastructure upgrade schemes — dramatically reduce MV incident energy.

---

9. Checklist: Arc Flash Study Readiness and Implementation

Use this checklist to assess your facility’s current arc flash programme status:

Data and Study

• Utility fault level formally obtained from DISCOM (maximum and minimum)
• Single-line diagram current and field-verified
• All protective device settings field-verified (not just from drawings)
• Bus gap dimensions measured or confirmed from manufacturer data sheets
• Short-circuit analysis completed per IEC 60909 or IEEE methodology
• Protective device coordination study completed with TCC plots
• Incident energy calculated per IEEE 1584-2018 at all equipment locations
• Both 100% and 85% arcing current cases evaluated
• Study report reviewed and signed by a qualified electrical engineer

Mitigation and Labelling

• High incident energy locations (>40 cal/cm²) reviewed for engineering mitigation
• Protective device settings optimised within coordination constraints
• Arc flash boundary defined for each equipment location
• Shock hazard boundaries defined for each equipment location
• NFPA 70E-compliant arc flash labels installed on all relevant equipment
• Label information cross-referenced with study report

PPE and Procedures

• Arc-rated PPE procured with ATPV rating ≥ calculated incident energy at each location
• PPE inventory meets headcount of qualified electrical workers
• Rubber insulating gloves tested and within 6-month test interval (IS 4770 / ASTM D120)
• Energised Electrical Work Permit procedure written, approved, and in use
• Lockout/tagout (LOTO) procedure written and implemented per IS 5216
• Electrical safety training conducted per NFPA 70E (initial and refresher every 3 years)

Programme Maintenance

• Study re-review scheduled for not more than 5 years hence
• Capital project procedure updated to trigger arc flash re-study review
• Protective device PM programme includes verification of trip settings
• Arc flash study scope included in management of change (MOC) procedure

---

10. Authoritative References and Resources for Further Study

Standards and Regulations

1. NFPA 70E-2024 — Standard for Electrical Safety in the Workplace. National Fire Protection Association. Available at: nfpa.org
2. IEEE 1584-2018 — IEEE Guide for Performing Arc Flash Hazard Calculations. Institute of Electrical and Electronics Engineers. Available at: ieee.org
3. Central Electricity Authority (Measures Relating to Safety and Electric Supply) Regulations, 2010. Government of India. Available at: cea.nic.in
4. The Electricity Act, 2003. Ministry of Power, Government of India.
5. The Factories Act, 1948. Ministry of Labour and Employment, Government of India.
6. IS 5216 (Part 1 & 2) — Safety Procedures and Practices in Electrical Work. Bureau of Indian Standards.
7. IS 4770 — Rubber Gloves for Electrical Purposes. Bureau of Indian Standards.
8. IEC 61482-1-1 / IEC 61482-2 — Live working — Protective clothing against the thermal hazards of an electric arc. International Electrotechnical Commission.

Industry Resources

9. BradyID Arc Flash Solutions — bradyid.com/arc-flash — Comprehensive resource for arc flash labels, LOTO products, and safety identification; widely used in Indian manufacturing. BradyID provides label design templates aligned to NFPA 70E labelling requirements and offers a free Arc Flash Label Builder tool.
10. SKANWEAR Arc Flash PPE — skanwear.com — European arc flash PPE specialist offering ATPV-rated garments tested to both IEC 61482 and ASTM F1506; products available in the Indian market through authorised distributors.
11. OSHA Electrical Safety Resources — osha.gov/electrical — OSHA’s guidance on electrical safety including arc flash, energised work, and lockout/tagout; referenced as international best practice by Indian EHS professionals. OSHA’s eTool on Electrical Safety provides free decision-support for hazard identification.
12. IEEE Xplore — ieeexplore.ieee.org — Access to IEEE 1584 and related technical papers on arc flash modelling and testing.
13. NFPA Free Access Resources — nfpa.org/free-access — Selected NFPA 70E sections available for review.
14. ETAP Arc Flash Analysis Module — etap.com — Industry-standard power system analysis software used for IEEE 1584-2018 compliant arc flash studies.
