An Electrical Thermography Audit is a non- invasive inspection process that uses thermal imaging technology to detect potential faults, hotspots, and anomalies in electrical systems. response procedures.

Electrical Thermography helps identify hidden issues that could lead to safety hazards, system failures, and inefficiencies, allowing for timely maintenance and prevention.

Thermography captures temperature variations in electrical components, highlighting areas of concern that may indicate overloading, loose connections, or other issues.

Our audits are conducted by certified and experienced thermography professionals who specialize in electrical system assessments.

No, Thermography complements regular maintenance by identifying potential issues early. Its an additional tool to enhance safety and efficiency.

We serve a wide range of industries, including manufacturing, commercial, industrial, and institutional sectors.

Frequency depends on your systems complexity and usage. Annual audits are common, but more frequent assessments may be necessary for critical systems. response plans.

Yes, by detecting overheating components, Thermography helps prevent conditions that can lead to electrical fires.

Absolutely, by identifying inefficiencies and areas of excess heat, you can optimize energy consumption and reduce operational costs.

Cost varies based on factors such as system size and complexity. Request a free quote to get an accurate estimate.

Indeed, our auditors are certified professionals with extensive training in thermography and electrical systems.

Audit duration depends on the size and complexity of the system. For instance, small setups may take a few hours, while larger facilities could require more time.

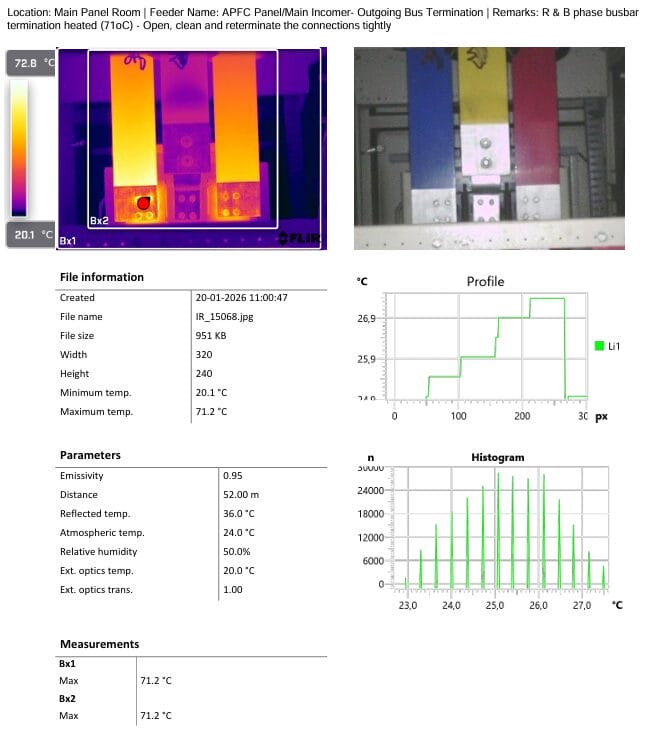

You’ll receive a detailed report that includes thermal images, findings, and recommendations for addressing any identified issues.

Thermography provides early warning signs of potential failures. As a result, you can schedule maintenance before costly breakdowns occur.

Absolutely, in addition, Thermography is non-contact and non-destructive, ensuring the safety of your equipment during the inspection.

While it’s highly effective, Thermography may not detect issues like internal component degradation. Therefore, it’s one tool in a comprehensive maintenance strategy.

Modern thermal imaging technology is highly accurate, however, interpretation of results by skilled auditors is crucial for reliable assessments.

Our report will outline recommended actions. Subsequently, you can work with us to plan and implement appropriate solutions.

Yes, in addition, we provide thermal images in the audit report for your reference and understanding.

Thermography is a technique used to create images or maps based on the infrared radiation emitted by objects. Furthermore, it is primarily used for detecting and visualizing temperature variations in objects, surfaces, or environments. The main purpose of thermography is to:

1. Temperature Measurement and Analysis: Thermography helps measure and analyze temperature distributions across a surface or object. Additionally, this can be valuable in various industries such as manufacturing, construction, and electronics, where monitoring temperature changes is crucial for quality control, process optimization, and safety.

2. Equipment Maintenance and Condition Monitoring: Thermography is widely used for predictive maintenance of equipment and machinery. In this capacity, by identifying abnormal temperature patterns, technicians can detect potential faults, overheating, or worn components, thereby allowing for timely maintenance to prevent costly breakdowns.

3. Building Inspections: In construction and architecture, thermography is employed to assess the energy efficiency of buildings and to identify areas of heat loss or air leakage. Furthermore, it’s also used to detect structural issues, such as water leaks, moisture intrusion, and insulation problems.

4. Medical Diagnostics: In the field of medicine, thermography can help identify and diagnose certain medical conditions. For instance, it can be used to detect breast cancer or assess inflammation in various parts of the body, since abnormal temperature patterns can indicate underlying health issues.

5. Firefighting and Search and Rescue: Thermography aids firefighters in locating hotspots within burning structures. Additionally, it’s also useful in search and rescue operations, where it assists in locating people in difficult conditions or identifying warm objects or bodies in low-visibility situations.

6. Electrical Inspections: Thermography is used to inspect electrical systems and components. Moreover, it can identify areas of high resistance, loose connections, or overloaded circuits, all of which can potentially lead to fire hazards or equipment failures.

7. Research and Development: Thermography is used in scientific research and development to study heat distribution, heat transfer, and thermal behavior of materials and systems. Furthermore, it plays a crucial role in various fields such as materials science, engineering, and physics.

8. Wildlife Monitoring: In ecology and wildlife biology, thermography is used to study animal behavior and distribution by detecting their body heat signatures. Specifically, it’s particularly helpful in nocturnal studies and observing animals in their natural habitats.




Thermography plays a crucial role in electrical maintenance because it enables the detection of potential issues in electrical systems through the visualization of temperature variations. Electrical equipment, when functioning properly, generates heat due to the flow of current. However, abnormal heat patterns can indicate problems such as loose connections, overloaded circuits, imbalanced loads, and other issues that could lead to equipment failure, fires, or safety hazards. In the realm of thermography in electrical maintenance, several key aspects are involved:

1. Early Problem Detection: Thermography allows technicians to identify overheating components. Furthermore, it enables them to do so even before they reach critical levels. This early detection helps prevent costly breakdowns, equipment damage, and potential safety hazards.

2. Preventive Maintenance: By conducting regular thermographic inspections, maintenance personnel can schedule timely repairs or replacements for components showing abnormal heat patterns. As a result, this approach helps extend the lifespan of electrical equipment and minimizes downtime.

3. Risk Assessment: Thermography provides a visual representation of the heat distribution in electrical systems. Consequently, this allows technicians to assess potential risks and prioritize maintenance tasks based on the severity of temperature anomalies.

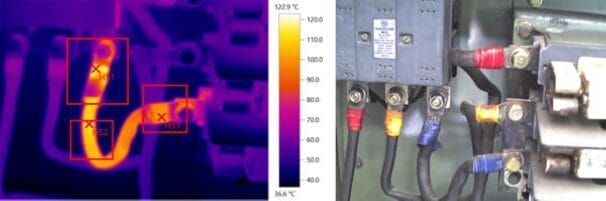

4. Loose Connection Detection: Loose or corroded electrical connections can lead to resistance, resulting in the generation of heat. Thermography can identify these hotspots, thereby enabling technicians to address the issue before it escalates.

5. Load Balancing: Imbalanced loads can cause certain components to overheat. To address this, by using thermography, technicians can identify areas with uneven heat distribution and take corrective measures to balance the loads.

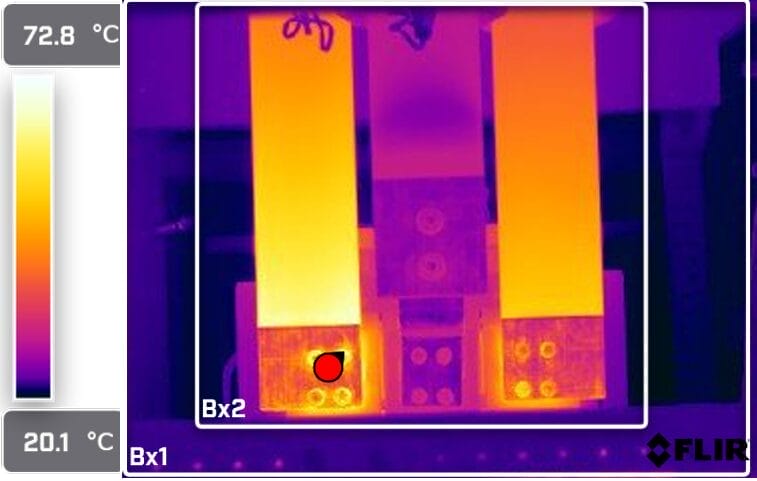

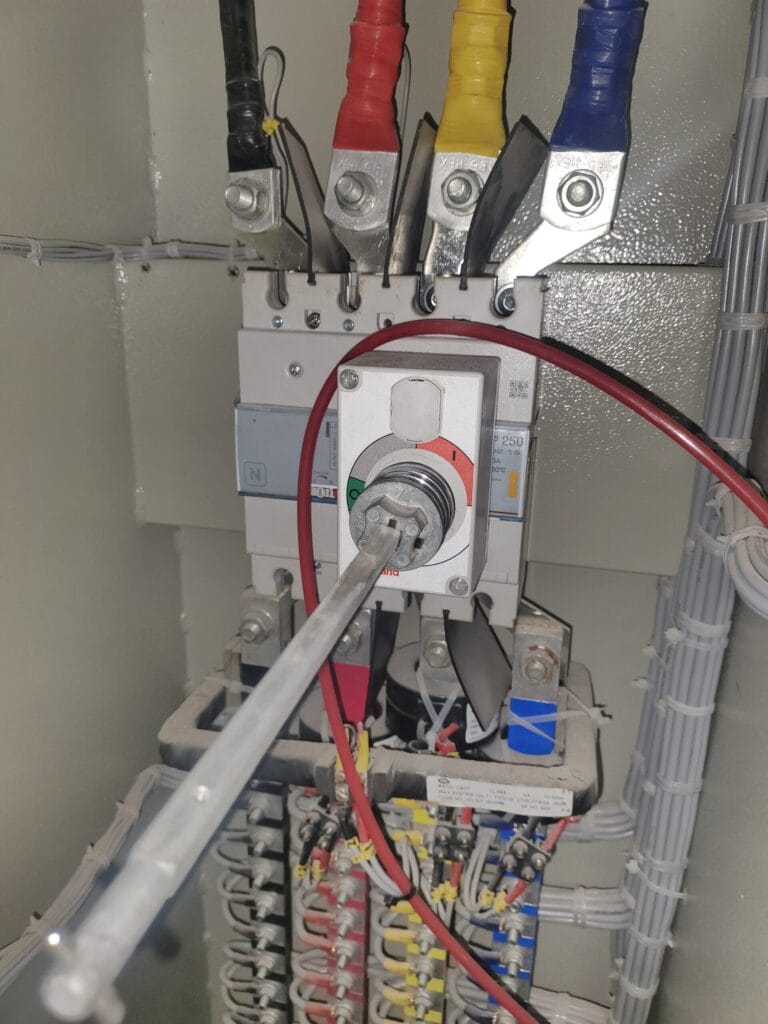

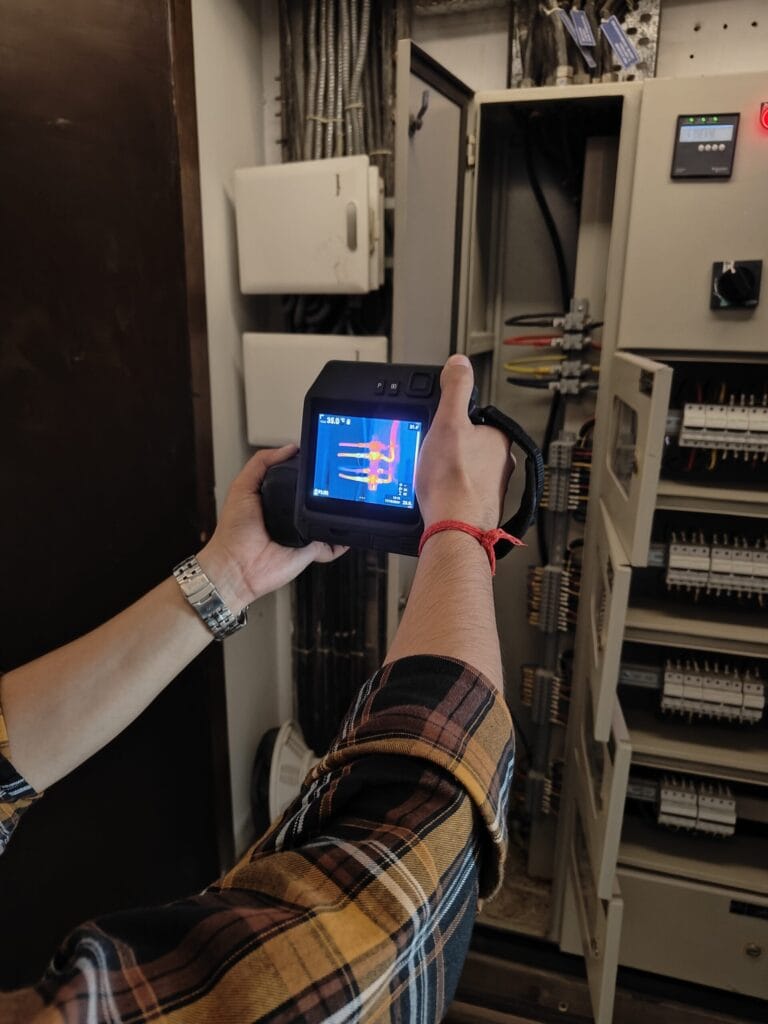

6. Electrical Panel Inspection: Thermography is used to inspect electrical panels and distribution boards. Specifically, hotspots within these panels could indicate issues with circuit breakers, fuses, or other components.

7. Switchgear Inspection: Switchgear, which controls the flow of electricity in a system, can generate a significant amount of heat. Therefore, thermography helps ensure that switchgear is operating within safe temperature limits.

8. Motor and Transformer Monitoring: Overheating in motors and transformers can lead to failure. To prevent this, thermography can identify abnormal temperature patterns in these devices, thus allowing for timely maintenance.

9. Fire Prevention: Many electrical fires are caused by heat buildup due to electrical faults. Therefore, thermography aids in identifying potential fire hazards, which in turn allows for early intervention.

10. Documentation and Record Keeping: Thermographic inspections provide visual evidence of the condition of electrical systems over time. Additionally, this documentation is valuable for compliance, audits, and tracking maintenance history.

1. Early Problem Detection: Electrical thermography allows for the early detection of issues such as overheating, loose connections, imbalanced loads, and other anomalies. This early identification helps prevent costly equipment breakdowns, downtime, and potential safety hazards.

2. Enhanced Safety: By identifying potential fire hazards and safety risks, thermography contributes to a safer working environment for personnel and helps prevent accidents and injuries caused by electrical failures.

3. Reduced Downtime: Regular thermographic inspections enable maintenance teams to proactively address issues before they lead to equipment failures. This approach reduces unplanned downtime and production interruptions, leading to increased operational efficiency.

4. Increased Equipment Lifespan: Timely identification and resolution of electrical problems extend the lifespan of electrical components and systems. This reduces the need for frequent replacements and contributes to cost savings.

5. Cost Savings: Preventive maintenance based on thermographic findings is more cost-effective than reactive repairs. It helps avoid expensive emergency repairs, equipment replacements, and production losses.

6. Improved Energy Efficiency: Thermography can reveal energy inefficiencies, such as areas of heat loss in buildings or overloading in electrical systems. Addressing these issues leads to energy savings and reduced operational costs.

7. Compliance and Regulatory Requirements: Many industries have regulations and standards related to electrical safety and maintenance. Thermography helps organizations meet these requirements by ensuring the proper functioning and safety of electrical systems.

8. Data-Driven Decision Making: Thermographic inspections provide visual data that can be analyzed to make informed decisions about maintenance priorities, repairs, and equipment upgrades.

9. Documentation and Record Keeping: Thermography generates visual evidence of the condition of electrical systems over time. This documentation is valuable for compliance reporting, audits, and insurance purposes.

10. Minimal Disruption: Thermographic inspections are non-intrusive and do not require equipment shutdowns. This means that routine inspections can be conducted without disrupting normal operations.

Yes, safety precautions are essential, including de-energizing equipment before inspection.

Any business with electrical systems can benefit, especially industries where downtime is costly or poses safety risks.

Frequency varies but typically annually, with more frequent checks for critical systems.

Benefits include early fault detection, reduced energy consumption, and enhanced safety.

Thermography can detect loose connections, overloaded circuits, and faulty components.

Outbound Link: Detectable Electrical Issues

Businesses should ensure clear access to electrical systems and provide necessary documentation.

Outbound Link: Preparing for a Thermography Audit

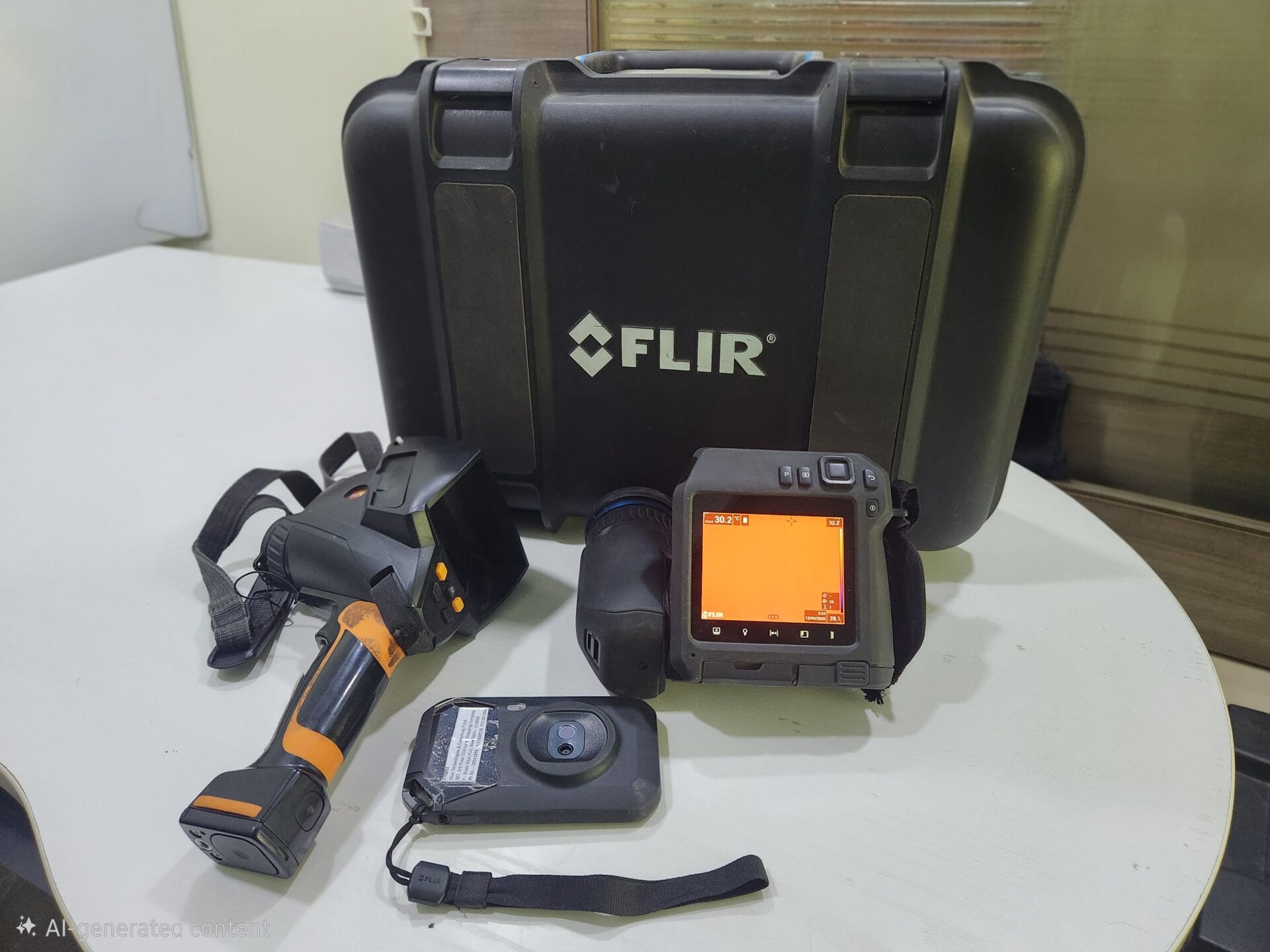

Infrared cameras capture thermal images of electrical components, which are analyzed for anomalies.

Yes, data can be used to predict equipment failures and plan maintenance proactively.
