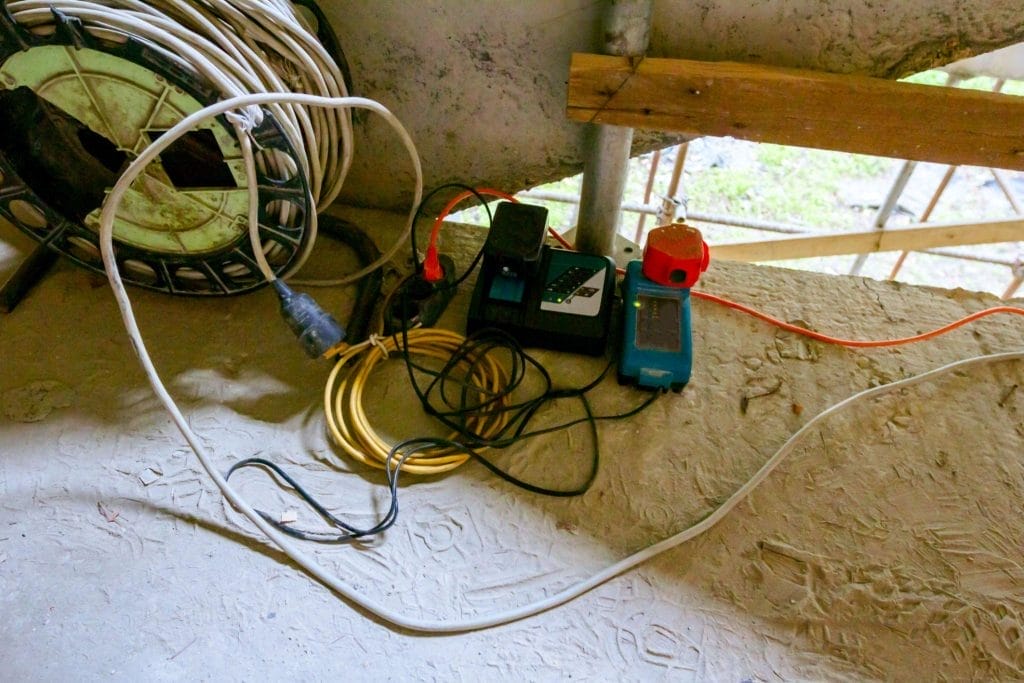

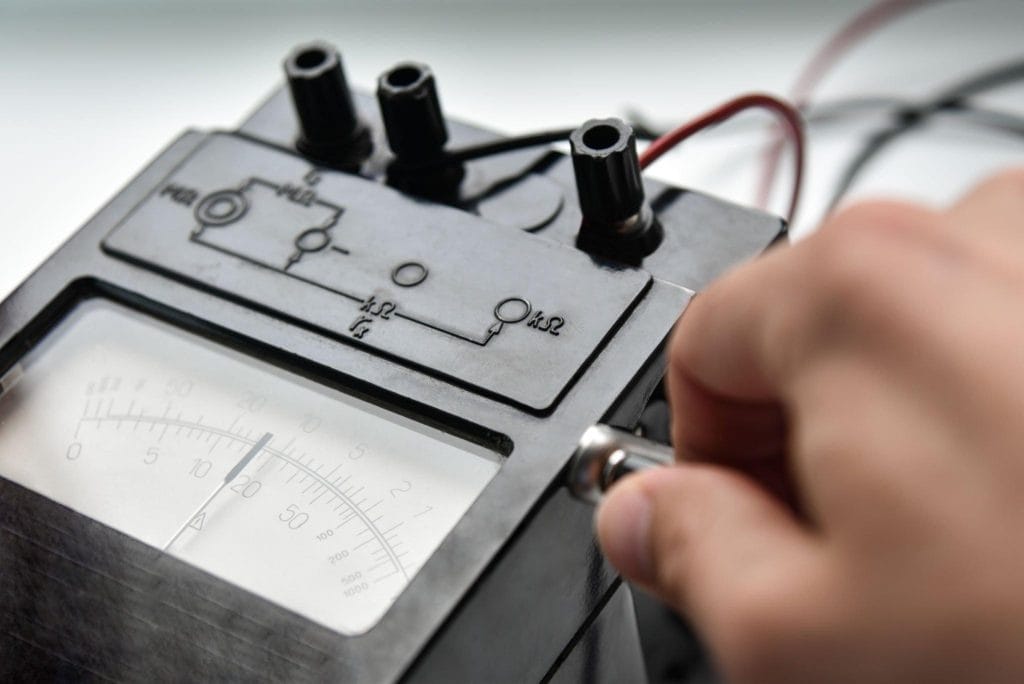

IR Testing

At Elion Technologies & Consulting Private Limited, we offer a comprehensive suite of insulation resistance testing services that are designed to empower your business with enhanced safety, efficiency, and compliance. With a steadfast commitment to excellence and a decade of industry experience, our certified auditors bring unparalleled expertise
to every project.
1. Electrical Hazard Prevention: Insulation resistance testing is a crucial preventive measure that helps you identify potential electrical hazards before they lead to accidents or downtime. Our advanced testing procedures detect weaknesses in insulation, allowing you to take proactive measures to ensure the safety of your personnel and equipment.
2. Minimized Downtime, Maximized Efficiency: Unplanned downtime can result in significant production losses and operational disruptions. By detecting insulation issues early, we enable you to address them proactively, minimizing unexpected breakdowns and optimizing the efficiency of your operations.

3.  Cost-Effective Maintenance: Prevention is often more cost-effective than repairs. Our testing identifies insulation weaknesses that, if left unaddressed, could escalate into costly equipment failures. By addressing these issues in their early stages, you save on maintenance costs and extend the lifespan of your valuable assets.
4. Tailored Solutions for Every Need: We understand that each client’s needs are unique. Our approach involves creating customized testing strategies that address your specific equipment, industry, and operational requirements. This ensures that you receive the most relevant and effective solutions.
5. State-of-the-Art Technology: Elion Technologies stays at the forefront of technological advancements in insulation resistance testing. We employ cutting-edge equipment and techniques to provide you with accurate and reliable assessments, giving you confidence in the integrity of your electrical systems.
6. Transparent Reporting: Our detailed and easy-to-understand reports provide a comprehensive overview of the testing process and results. This transparent documentation empowers you to make informed decisions about maintenance, repairs, and future investments.
7.  Trusted Partner, Lasting Relationship: When you choose Elion Technologies, you’re not just selecting a service provider – you’re entering into a partnership built on trust and commitment. We are dedicated to supporting your long-term insulation resistance testing needs and ensuring the ongoing safety and efficiency of your operations.

Discover the difference that Elion Technologies & Consulting Pvt. Ltd. brings to insulation resistance testing. Our services go beyond routine assessments – they empower you to secure your electrical systems, enhance productivity, and thrive in a compliant and competitive environment.

Get a Customized Quote

Why choose us?

At Elion Technologies & Consulting Private Limited, we stand out as a leading authority in the field of insulation resistance testing. With a decade of unwavering commitment and proven expertise, we offer compelling reasons to make us your preferred partner:
1. Extensive Experience: Since 2010, Elion Technologies has been a stalwart presence in the industry. Our long-standing experience equips us with insights, knowledge, and skills that
translate into precise, effective, and reliable insulation resistance testing.
2. Certified Expert Auditors: Our team comprises certified auditors who are not only experts in their field but are also committed to maintaining the highest standards of quality and professionalism. Their proficiency ensures accurate assessments and dependable solutions.
3. Industry Recognition: Elion Technologies has earned a reputation for excellence. Our track record speaks volumes about our dedication to delivering superior services, making us a trusted name among businesses and industries.

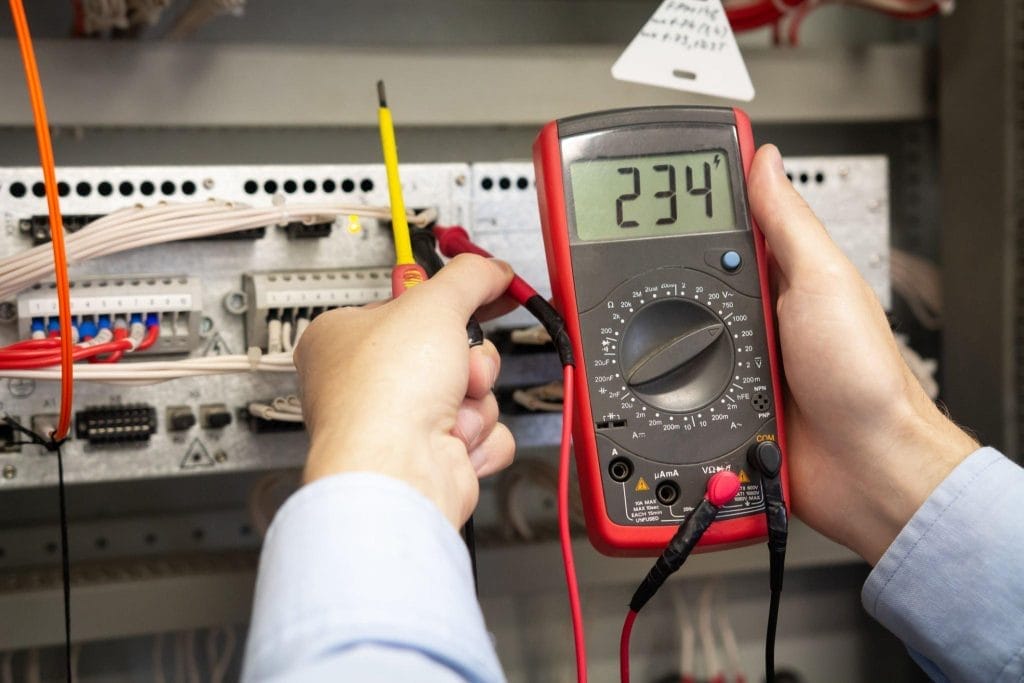

IR Testing Service

4. Comprehensive Solutions: We understand that each client’s needs are unique. Our tailored approach ensures that you receive solutions that are customized to your equipment, industry, and operational requirements, providing the most relevant and effective outcomes.
5. Cutting-Edge Technology: We keep pace with the latest advancements in insulation resistance testing technology. By utilizing state-of-the-art equipment and techniques, we offer advanced testing procedures that yield accurate and insightful results.
6. Regulatory Compliance Assurance: Navigating the landscape of industry regulations can be complex. Our services align with standards and regulations, helping you achieve and maintain compliance while avoiding penalties and legal complications.
7. Proactive Safety Measures: Insulation resistance testing is a proactive measure to enhance safety. By identifying potential electrical hazards before they escalate, we contribute to creating a safer environment for your personnel and equipment.
8. Cost-Effective Approach: Our testing philosophy revolves around prevention, which is often more cost-effective than dealing with repairs. By detecting insulation weaknesses early, we help you mitigate the risk of costly breakdowns and extend the lifespan of your assets.
9. Transparent Reporting: Our detailed reports provide clear insights into the testing process and results, enabling you to make informed decisions about maintenance, repairs, and investments. Transparency is a cornerstone of our service.
10. Lasting Partnership: Choosing Elion Technologies means embarking on a lasting partnership. We are dedicated to being your reliable, long-term partner for insulation resistance testing, supporting your safety, compliance, and efficiency goals.

Request a Free Consultation

Industry Experience

Emergency Plan Prepareation by Elion

With over a decade of unwavering commitment, Elion Technologies & Consulting Private Limited has cultivated a robust industry experience that is second to none. Our extensive tenure in the field of insulation resistance testing underscores our position as a trusted and authoritative partner. Here’s how our industry experience makes all the difference:
1. Mastery of Insulation Resistance Testing: Since our inception in 2010, we have dedicated ourselves to mastering the intricacies of insulation resistance testing. Our seasoned professionals have encountered a diverse range of challenges, allowing us to develop nuanced insights and proficiency that directly benefit your projects.
2. In-Depth Knowledge: Our years of hands-on experience have granted us an in-depth understanding of the nuances within various industries. This knowledge empowers us to tailor our services to address the unique demands of your sector, ensuring relevant and effective solutions.

3. Solutions Backed by Data: Throughout our journey, we have amassed a wealth of data and real-world scenarios. This database of insights enables us to approach your projects with evidence-based strategies, optimizing the accuracy of our assessments and recommendations.
4. Evolving with Technology: Over the years, we have witnessed the rapid evolution of technology in insulation resistance testing. Our adaptability and proactive integration of cutting-edge tools ensure that your projects benefit from the latest advancements.
5. Trusted by Industries: Our industry experience has resulted in a strong network of clients across various sectors. Our reputation as a reliable and knowledgeable partner has earned us the trust of businesses and industries seeking top-tier insulation resistance testing.
6. Problem-Solving Expertise: Through the challenges we’ve encountered, we have honed our problem-solving skills. Complex situations become opportunities for us to showcase our ability to devise innovative and effective solutions.
7. Regulatory Navigation: Navigating the intricate landscape of regulations and standards is a skill we have mastered. Our familiarity with compliance requirements ensures that your projects align with industry benchmarks and avoid potential complications.
8. Long-Term Insights: Our years of experience have given us the ability to anticipate long-term trends and potential issues. We provide insights that go beyond immediate needs, helping you make informed decisions for the future.
9. Client-Centric Approach: At Elion Technologies, we have learned that each client is unique. Our industry experience has reinforced our commitment to personalized service, ensuring that your specific needs are met with tailored solutions.
10. Continued Excellence: Our journey is ongoing, and our industry experience is ever- growing. We remain dedicated to maintaining our position as leaders in insulation resistance testing, continually seeking new ways to elevate our services and deliver exceptional results.

Schedule Your Assessment Today

FAQs

1. What is insulation resistance testing?

Insulation resistance testing is a process that assesses the integrity of electrical insulation materials to ensure they can withstand voltage without breakdown. It helps identify potential hazards and weaknesses in electrical systems.

2. Why is insulation resistance testing important?

Insulation resistance testing is crucial for preventing electrical accidents, minimizing downtime, ensuring compliance with regulations, and optimizing the lifespan of equipment.

3. How often should insulation resistance testing be performed?

The frequency of testing depends on factors like equipment type, industry regulations, and environmental conditions. Typically, regular testing is recommended, with intervals ranging from monthly to annually.

4. Who should perform insulation resistance testing?

Insulation resistance testing should be conducted by certified professionals with expertise in electrical systems and testing procedures to ensure accurate and reliable results.

5. What equipment is tested during insulation resistance testing?

Insulation resistance testing can be performed on a wide range of electrical equipment, including motors, transformers, cables, switchgear, and generators.

6. What are acceptable insulation resistance values?

Acceptable values vary based on equipment type and industry standards. Lower insulation resistance values could indicate potential issues, while higher values are generally desired.

7. Is insulation resistance testing mandatory?

While it may not be mandatory in all cases, many industries and regulatory bodies require insulation resistance testing to ensure safety and compliance.

8. How long does an insulation resistance test take?

The duration varies depending on the complexity of the system being tested. It can range from a few minutes for simple equipment to several hours for larger systems.

9. Can insulation resistance testing cause any damage to equipment?

When performed correctly by experienced professionals, insulation resistance testing is non-destructive and shouldn’t cause any harm to the equipment.

10. Can insulation resistance testing prevent electrical fires?

Yes, insulation resistance testing helps identify potential fire hazards by detecting insulation weaknesses that could lead to short circuits or overheating.

11. What is the difference between insulation resistance testing and continuity testing?

Insulation resistance testing focuses on the integrity of insulation materials, while continuity testing checks for the presence of a complete electrical path.

12. How is insulation resistance testing performed?

Insulation resistance testing involves applying a controlled voltage to the insulation and measuring the resulting current flow. The measured resistance helps assess insulation quality.

13. Can insulation resistance testing be performed on live equipment?

In some cases, insulation resistance testing can be performed on live equipment using specialized instruments designed for this purpose. However, it’s generally safer to conduct testing on de energized equipment.

14. What should I do if the insulation resistance test results are low?

Low insulation resistance values indicate potential issues. It’s important to further investigate and address the root cause, which could involve cleaning, repairs, or replacements.

15. How can I prepare for insulation resistance testing?

Preparations may include de-energizing equipment, ensuring a safe testing environment, and providing access to the equipment for the testing team.

16. Can insulation resistance testing be performed in harsh environments?

Yes, insulation resistance testing can be adapted for various environments, including harsh or challenging conditions, using appropriate equipment and safety measures.

17. Is insulation resistance testing only for older equipment?

No, insulation resistance testing is valuable for both new and old equipment. It helps verify the quality of new installations and monitors the condition of existing systems.

18. Can I use insulation resistance testing as a predictive maintenance tool?

Yes, insulation resistance testing is commonly used as part of predictive maintenance programs to detect potential issues before they lead to equipment failure.

19. How do I interpret insulation resistance test results?

Test results are typically compared to established industry standards or manufacturer recommendations. Deviations from these values can indicate insulation problems that need attention.

20. How do I get started with Elion Technologies' insulation resistance testing services?

Getting started is easy. Contact us through our website or give us a call to schedule an assessment. Our experienced team will guide you through the process and provide tailored solutions based on your needs.

21.What are the different types of insulation resistance tests?

Insulation resistance tests are conducted to assess the quality and integrity of insulation materials used in electrical systems. These tests help identify potential faults, degradation, or contamination in the insulation, which can lead to breakdowns or electrical hazards. There are several types of insulation resistance tests, each serving a specific purpose:

  1. Megger Test (Megohm or IR Test): This is the most common insulation resistance test. A Megger instrument is used to apply a DC voltage (typically 500 V or 1000 V) to the insulation being tested. The resulting current is measured, and the resistance is calculated using Ohm’s law. This test is used to evaluate the insulation resistance of cables, motors, transformers, and other electrical equipment.

  2. Polarization Index (PI) Test: The PI test is an extension of the Megger test. It involves taking multiple insulation resistance measurements over a specific time period using increasing voltages (usually 10 minutes at 500 V and 1 minute at 1000 V). The ratio of the insulation resistance at the end of the 10-minute period to the resistance at the 1-minute mark is called the Polarization Index. This test helps detect insulation absorption, surface moisture, and long-term insulation degradation.

  3. Dielectric Absorption Ratio (DAR) Test: Similar to the PI test, the DAR test measures the insulation resistance at 1 minute and 30 seconds after the test voltage is applied. The ratio of the two measurements is known as the Dielectric Absorption Ratio. This test is particularly useful for assessing insulation in high-voltage equipment.

  4. Step Voltage Test (SV Test): In this test, the voltage is increased in steps, and the insulation resistance is measured after each step. It’s used to identify weaknesses or partial discharge in insulation that may not be apparent with a standard Megger test.

  5. Timed Resistance Test: This test involves applying a constant voltage for a fixed duration (e.g., 10 minutes) and measuring the resulting current and resistance. It’s used to assess the insulation properties of large equipment like transformers and generators.

  6. Guarded Insulation Resistance Test: This test is used for equipment with parallel paths or multiple insulating materials. A guard terminal is used to separate the paths and measure the insulation resistance of each independently.

  7. Spot Insulation Test: In this test, specific points on an electrical system are tested for insulation resistance. It’s often used to assess the condition of insulation in areas that are difficult to access or where the entire system can’t be de-energized.

  8. Short-Time Insulation Resistance Test: In this test, a higher test voltage is applied for a short duration (usually a few seconds) to assess the insulation’s ability to withstand transient voltage spikes.

22. What is the standard insulation resistance?

The standard insulation resistance value can vary depending on the specific equipment, installation, and industry standards. Insulation resistance values are typically measured in megohms (MΩ) and are influenced by factors such as temperature, humidity, the type of insulation material, and the voltage rating of the equipment. As a general guideline, here are some commonly referenced insulation resistance values for various types of equipment:

  1. Low-Voltage Equipment (e.g., Cables, Motors, Switchgear):

    • New equipment: 100 MΩ or higher
    • Aged equipment: 1 MΩ or higher (Some sources suggest 0.5 MΩ for aged equipment)
  2. Medium-Voltage Equipment (e.g., Transformers, Generators, Switchgear):

    • New equipment: 1000 MΩ or higher
    • Aged equipment: 10 MΩ or higher
  3. High-Voltage Equipment (e.g., Power Transformers, Substation Equipment):

    • New equipment: 1000 MΩ to 5000 MΩ or higher
    • Aged equipment: 100 MΩ or higher
  4. Electronic and Sensitive Equipment:

    • New equipment: 1 GΩ (1000 MΩ) or higher
    • Aged equipment: 100 MΩ or higher

It’s important to note that these values are only general guidelines and can vary based on the specific standards and guidelines followed by different industries and organizations. Additionally, the recommended insulation resistance values might change based on the voltage level of the equipment and the criticality of the installation.

Always refer to relevant industry standards, manufacturer’s recommendations, and specific guidelines for the equipment you are testing. Insulation resistance measurements should be interpreted within the context of the equipment’s design, operating conditions, and the specific requirements of the installation. If you’re unsure about the acceptable insulation resistance values for a particular piece of equipment, it’s best to consult with experts in the field or refer to relevant standards such as IEEE, IEC, or national electrical codes.

23. What is Megger used for?

A Megger, which is a type of electrical test instrument, is primarily used to measure the insulation resistance of electrical equipment and systems. It’s one of the most commonly used tools for evaluating the quality and integrity of insulation materials in various electrical components. Here are the main purposes for which a Megger is used:

  1. Insulation Resistance Testing: The primary function of a Megger is to perform insulation resistance tests. It applies a direct current (DC) voltage to the insulation of electrical components such as cables, motors, transformers, generators, and switchgear. The resulting current flow is measured, and the insulation resistance is calculated. This test helps identify insulation defects, moisture ingress, and degradation of insulation over time.

  2. Quality Control: Megger tests are often used during the manufacturing process of electrical equipment to ensure that the insulation meets the required standards. By testing the insulation resistance of newly manufactured equipment, manufacturers can verify the quality and reliability of their products before they are shipped to customers.

  3. Preventive Maintenance: Regular insulation resistance testing using a Megger is a key component of preventive maintenance programs. By periodically testing the insulation resistance of equipment, maintenance personnel can identify potential issues and take corrective actions before they lead to equipment failure or electrical hazards.

  4. Diagnosis of Electrical Problems: Insulation resistance tests can help diagnose electrical problems such as short circuits, ground faults, and insulation breakdowns. By comparing current and previous insulation resistance measurements, technicians can assess the health of the insulation and determine if any degradation has occurred.

  5. Commissioning of Equipment: When new electrical systems or equipment are installed, Megger tests can be used during the commissioning process to ensure that the insulation is sound and capable of withstanding the expected operating conditions.

  6. Verification of Repairs: After repairing or replacing insulation in electrical components, Megger tests can be performed to verify that the insulation has been restored to an acceptable level and that the repair was successful.

  7. Safety Assurance: Insulation resistance testing is crucial for ensuring the safety of electrical systems and preventing electrical accidents. By maintaining proper insulation, the risk of electrical shock and fire due to insulation failure is significantly reduced.

  8. Documentation and Compliance: Megger tests provide measurable data that can be documented as part of compliance with safety standards and regulations. Proper documentation of insulation resistance test results demonstrates that the equipment is being maintained according to industry guidelines.

In summary, a Megger is an essential tool for assessing the insulation quality of electrical equipment, helping to ensure safety, reliability, and optimal performance in various applications.

24. How is the insulation resistance test measured?

The insulation resistance test is measured using a specialized instrument called a Megger or insulation resistance tester. This instrument applies a high direct current (DC) voltage to the insulation of the component being tested and measures the resulting current flow. The insulation resistance is then calculated using Ohm’s law (Resistance = Voltage / Current).

Here’s a step-by-step explanation of how the insulation resistance test is typically performed:

  1. Preparation:

    • Ensure that the equipment under test is de-energized and properly isolated from the power source to prevent any electrical hazards.
    • Disconnect any parallel paths or grounding connections that could affect the test results.
    • Select the appropriate voltage range on the Megger instrument based on the equipment’s voltage rating.
  2. Connection:

    • Connect one lead of the Megger to the component’s insulation material, such as the insulation of a cable or winding of a motor.
    • Connect the other lead of the Megger to the grounding point or earth connection, ensuring proper electrical contact.
  3. Test Setup:

    • Set the Megger instrument to the desired test voltage. Common test voltages are 500 V and 1000 V, but the specific voltage depends on the equipment’s voltage rating and the applicable standards.
  4. Test Execution:

    • Activate the Megger instrument to apply the selected test voltage to the insulation. The instrument generates a high DC voltage and maintains it during the test.
    • The instrument measures the current flowing through the insulation as a result of the applied voltage. This current is typically in the microampere (μA) range due to the high resistance of the insulation.
  5. Measurement:

    • After a brief stabilization period (usually around 1 minute), the Megger instrument displays the insulation resistance value in megohms (MΩ) or gigohms (GΩ) on its screen.
    • The displayed value is the ratio of the applied test voltage to the measured current: Insulation Resistance = Test Voltage / Measured Current.
  6. Recording Results:

    • Record the insulation resistance value along with relevant information such as the test voltage, date, location, equipment identification, and any other pertinent details.
  7. Interpretation:

    • Compare the measured insulation resistance value with the expected or acceptable range based on industry standards, equipment specifications, and manufacturer recommendations.
    • Higher insulation resistance values generally indicate better insulation quality and integrity.
  8. Safety Measures:

    • After completing the test, discharge any residual voltage from the equipment and the Megger instrument to ensure the safety of personnel and the equipment.

It’s important to note that environmental conditions, such as temperature and humidity, can influence the test results. Therefore, it’s recommended to perform insulation resistance tests under controlled conditions and to interpret the results with consideration for these factors.

Always follow safety protocols and manufacturer guidelines when performing insulation resistance tests, and ensure that the equipment being tested is properly de-energized and isolated to prevent accidents or damage.

25. Why is Insulation Resistance Testing important for electrical systems?

It helps prevent electrical faults, such as short circuits and electrical shocks, by ensuring the insulation’s effectiveness.

Outbound Link: Electrical Safety – Importance

26. Who should consider conducting Insulation Resistance Testing for their facility?

Any organization with electrical systems, including industrial plants, commercial buildings, and utilities, should consider it for safety and reliability.

Outbound Link: NFPA – Electrical Systems

27. What are the primary objectives of Insulation Resistance Testing?

Objectives include verifying insulation quality, detecting deterioration, and ensuring compliance with safety standards.

Outbound Link: Electrical Safety Standards

28. How does electrical insulation work, and why is it essential in electrical systems?

Insulation prevents unintended electrical contact, ensuring that current flows only where it should, preventing electrical hazards.

Outbound Link: Understanding Electrical Insulation

29. How is Insulation Resistance Testing conducted?

Testing involves applying a voltage and measuring the resistance between conductors and the insulation material.

Outbound Link: Insulation Resistance Testing Methods

30. Can Insulation Resistance Testing help organizations comply with industry regulations and standards?

Yes, it ensures compliance with standards like IEEE 43 for electrical insulation testing.

Outbound Link: IEEE 43 – Standard
